Trees for Multidimensional Data

Table of Contents

1 Videos

This lesson consists of a series of videos made by Professor Joshua Hug at University of California, Berkeley

2 Practice Problems1

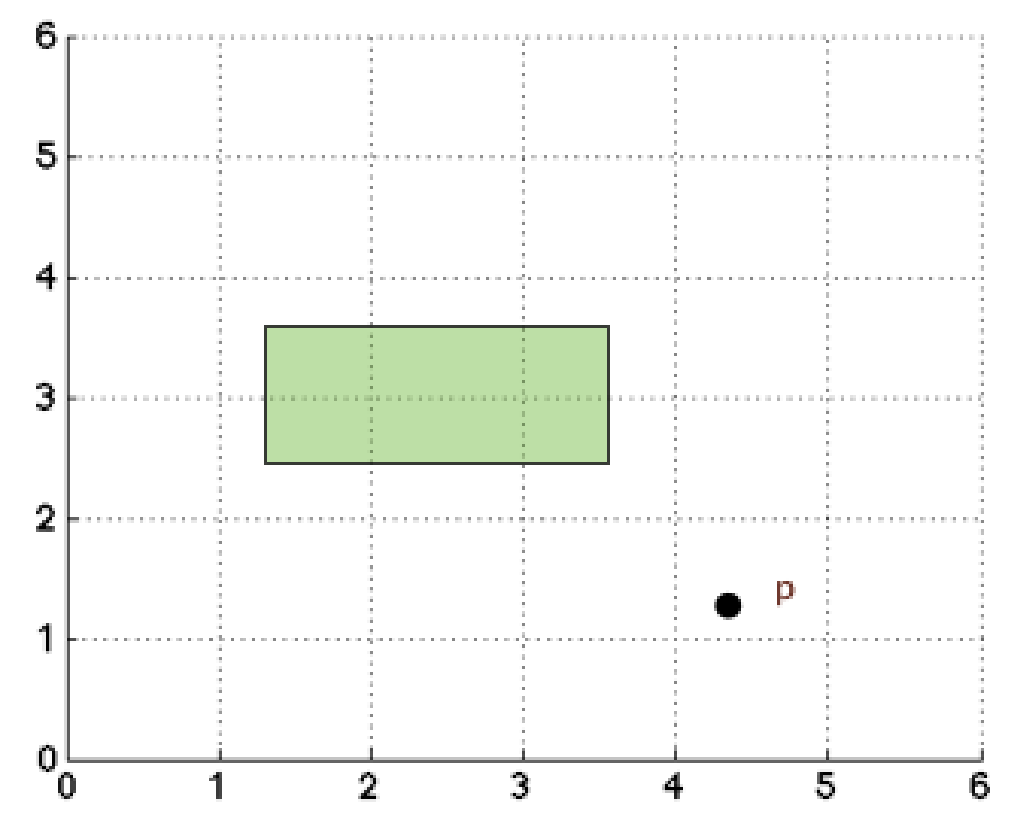

  1. To the right of the axis below, draw the k-d Tree after inserting the points [(2, 3), (4,2), (4, 5), (3, 3), (1, 5), (4, 4)]. Be careful when inserting (4, 4), as ties are treated the same as greater than. On the axes, draw each point as well as the red or blue lines that bisect the plane through each point.


  2. List the corresponding axis-aligned rectangles for each point. The corresponding axis-aligned rectangle of (2, 3) is [(−∞, −∞), (+∞, +∞)].
  3. Consider a range query on the shaded rectangle. Write "R" next to each node in your k-d Tree that is traversed by the range search algorithm. Do not count null nodes or nodes whose corresponding rectangles do not intersect the query rectangle.
  4. Consider a nearest neighbor query on point p. Number each node (starting with 0) by the order in which it is visited by the nearest neighbor algorithm UNLESS that node's corresponding rectangle rules out that node or its children. For nodes that are pruned based on rectangle distance, write an "X" instead of a number. Do not number null nodes.

3 Learning Block

Footnotes:

1

Solutions:

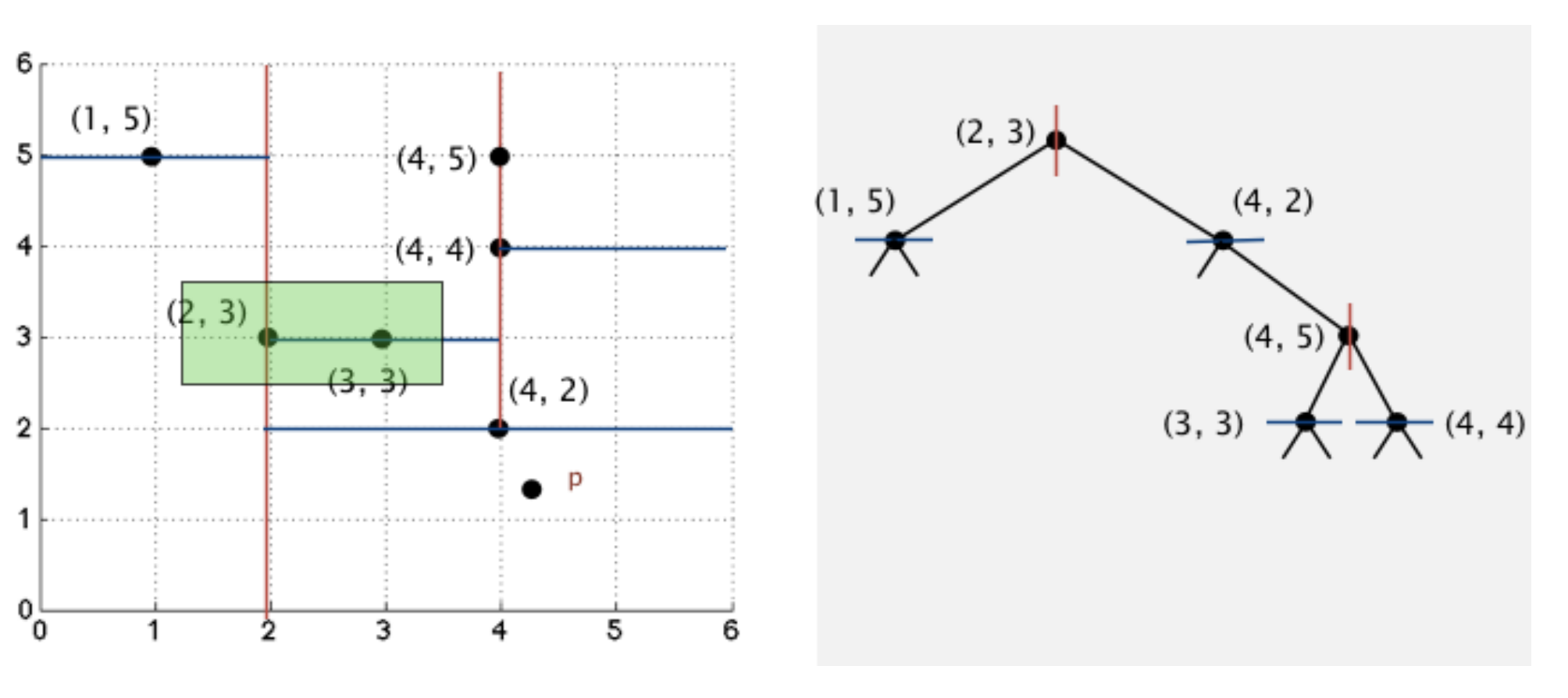

  1. Geometric and tree representations:

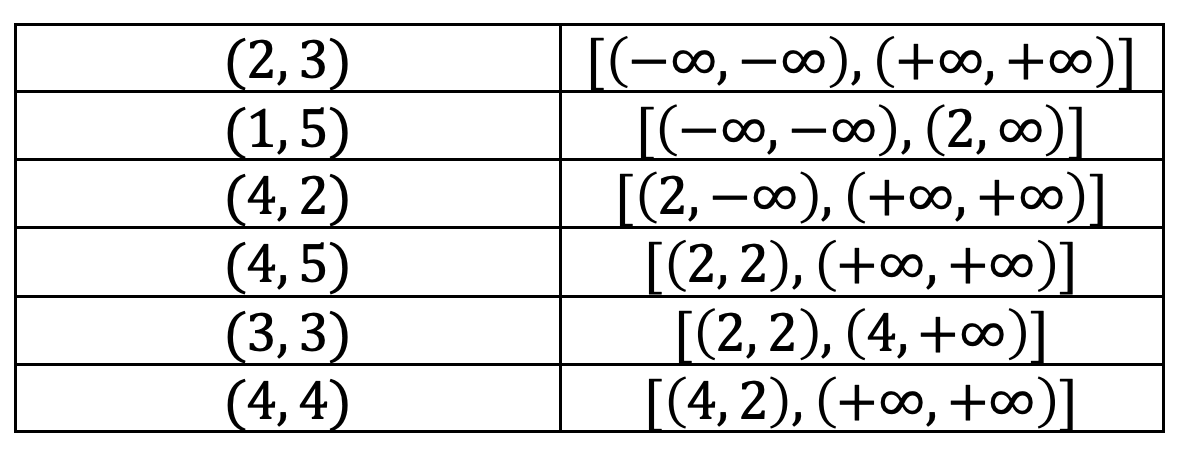

  2. Table of rectangles:


    A nice way to think about (3, 3) for example, is that it is:

    • To the right of (2, 3)
    • Above (4, 2)
    • To the left of (4, 5)

    Naturally, this means its corresponding rectangle should be [(2, 2), (4, +∞)]

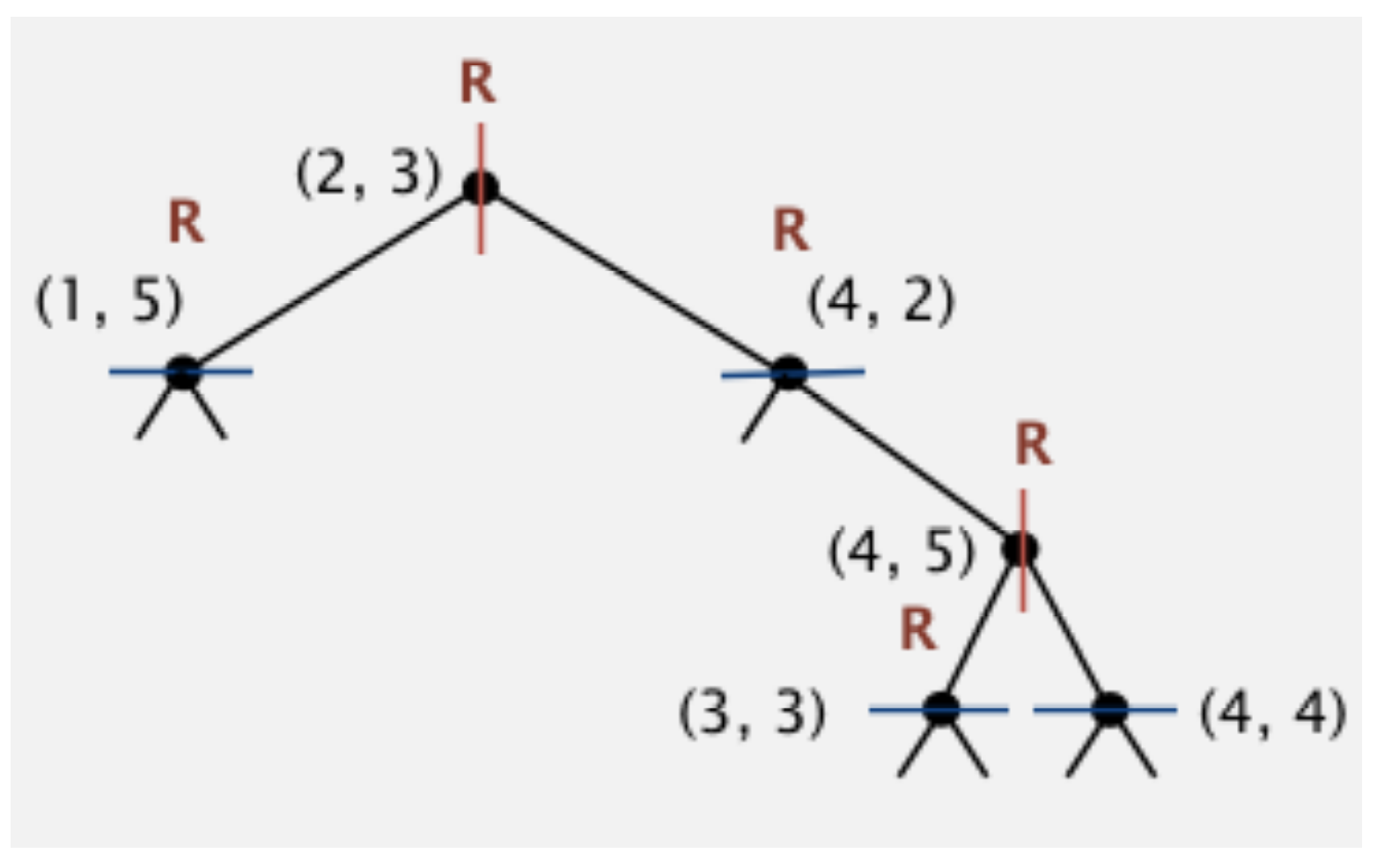

  3. Labeled tree:

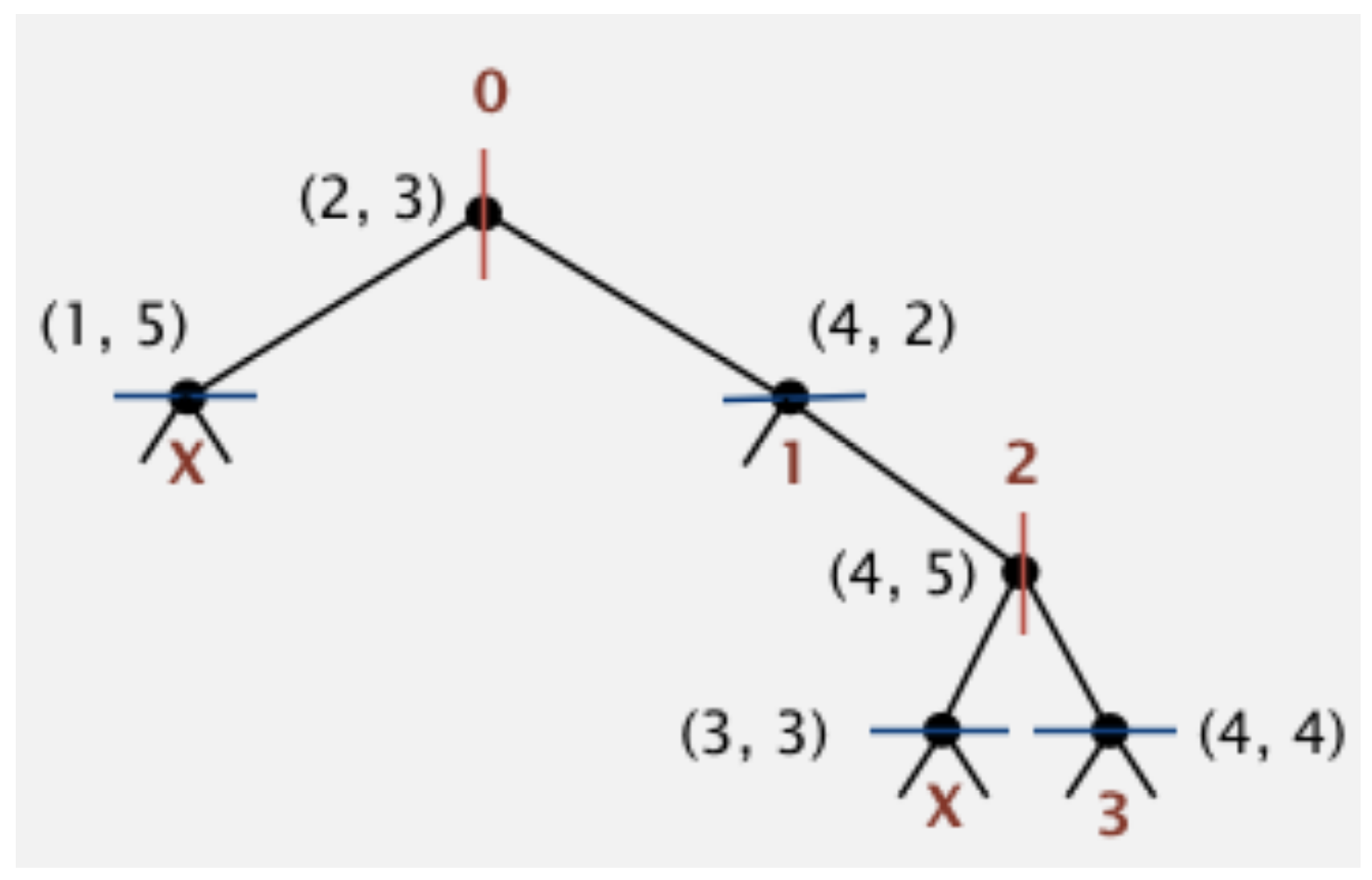

  4. Labeled tree:


    Xs denote nodes that were ruled out. An important point to make here is that the way that we know that (3, 3) and all of its children are farther from the query point is that (3, 3)'s corresponding rectangle is farther from the query point than our current best point (4, 2). The same idea holds true for (1, 5)'s corresponding rectangle, whose distance to p is greater than (4, 2) to p.

Detailed algorithm trace for range search:

  1. (2, 3): Base case: Check to see if (2, 3)'s corresponding rectangle intersects the green rectangle. Since the (2, 3)'s rectangle is the entire universe, of course it intersects. Check to see if (2, 3) is contained in the rectangle. It is, so add it to the iterable. Go left first (order doesn't matter). We reach (1,5).
  2. (1, 5): Base case: Check to see if (1, 5)'s corresponding rectangle intersects the green rectangle. Yes, the left half of the bisected plane does indeed intersect, so we proceed. We see if (1, 5) is contained in the green rectangle. It is not. We recur left.
  3. Null to the left of (1, 5): Base case detects null, returns to (1, 5). This repeats for the right child.
  4. (4, 2): Corresponding rectangle intersects, so proceed. Point is not part of rectangle. Recur left, is null, return. Recur right.
  5. (4, 5): Rectangle intersects, so proceed. Point is not part of rectangle. Recur left.
  6. (3, 3): Rectangle intersects, so proceed. Point is part of rectangle, so add to iterable. Left and right recursive calls result in nulls. Return back to (4, 5), recur right.
  7. (4, 4): Rectangle for (4, 4) does NOT intersect green rectangle, so abort search. Return to (4, 5). Return to (4, 2). Return to (2, 3). We are done.

Detailed algorithm trace for nearest neighbor:

  1. Champion point starts as (2, 3). Best distance is also recorded for convenience. Program begins.
  2. (2, 3): We compute the distance between (2, 3)'s rectangle and the query point, which is 0 since it is contained in the rectangle. 0 is closer than the best distance, so we do not prune. Now we must decide whether to go left or right. We compare (2, 3)'s x coordinate with p's x coordinate. Since p is to the right, we go right first.
  3. (4, 2) We compute the distance between (4, 2)'s rectangle and the query point, which is again 0. 0 is less than the champion distance, so we do not prune. (4, 2) is closer to the query point than (2, 3), so we make (4, 2) the new champion. We decide to go either up or down. Since p is below (4, 2), we go down first.
  4. null to the left of (4, 2): Since this is null, we just return. Then we go up from (4, 2).
  5. (4, 5): The distance between (4, 5)'s rectangle and the query point is something slightly less than 1. This distance is clearly a bit less than the champion distance, so we do not prune. We compare (4, 5)'s distance to p with the champion distance, and it is farther, so (4, 2) remains the champion. We then decide to go left or right. Since p's x coordinate is greater than (4, 5), we go right first.
  6. (4, 4). The distance from (4, 4)'s rectangle is exactly the same as the previous iteration, just a bit less than 1. This distance is less than the champion distance, so we do not prune. (4, 4)'s distance is farther than the champion distance, so (4, 2) remains the champion. We then decide whether to go down or up. We go down first, see null. Then go up. See null. Then return to (4, 5). Then we go left to (3, 3).
  7. (3, 3). This point's corresponding rectangle is the same distance from the query point than the current champion. Indeed, the champion (4, 2) is exactly the point defining the corresponding rectangle. Thus, we prune this search, since there's no way we can do better. We return to (4, 5), then to (4, 2), and finally back to (2, 3). From there, we go left to (1, 5).
  8. (1, 5). This point's corresponding rectangle is the left half of the plane, with distance of a bit more than 2 from the query point. Since this is greater than the champion distance, we prune the search. We return to (2, 3) and we are done.
