CS 208 f21 — Memory Layout and the Stack
Table of Contents
1 Stack Operations

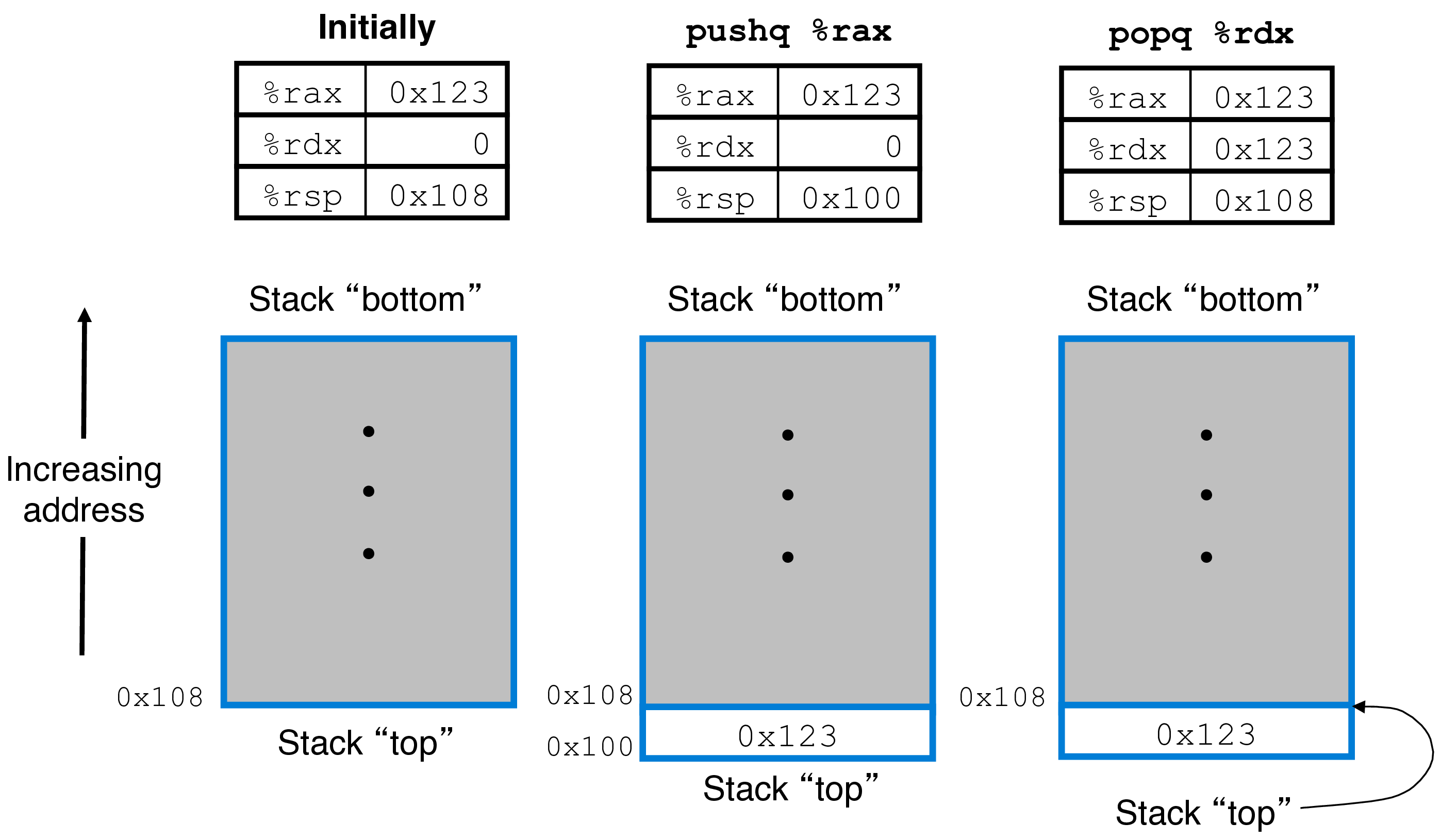

pushq
andpopq
instructions push/pop quad words onto/off of the program stackpushq
has a source operand,popq
has a destination- the stack is a region of memory used to facilitate local variables and procedure calls
- top of the stack is the lowest memory address, and is conventionally drawn at the bottom
- each of these instructions combine a data move (copy the source to memory location for
push
, copy value in memory to destination forpop
) and modifying the stack pointer%rsp
, the stack pointer, always contains the address of the top of the stack- either decremented by 8 (
push
, stack grows down) or incremented by 8 (pop
)
2 Procedures
2.1 Are Jumps Enough?
- could we implement procedure calls using jumps?
- maybe we could use
jmp
to go into a function call, and then return byjmp
-ing to a label right after the call
func1: ... jmp func2 back: ... done: func2: ... jmp back done:
- but what if
func1
callsfunc2
twice?
func1: ... jmp func2 back1: ... jmp func2 back2: ... done: func2: ... jmp back? // which label do we jump to?? Have to choose at compile time done:
- we would need to compile a different version of
func2
for every call, so that we could jump back to the right place - there's got to be a better way…
2.2 Overview
- mechanisms needed to facilitate procedures (e.g., procedure
P
calls procedureQ
, thenQ
executes and returns back toP
):- passing control: instruction pointer (
%rip
) must be set to the start ofQ
(call) and then set to the instruction following the call toQ
inP
(return) - passing data:
P
has to provide arguments toQ
andQ
has to return a value toP
- allocating and deallocating memeory:
Q
needs to acquire space for local variables and then free that space
- passing control: instruction pointer (
- requires seperate storage per call (not just per procedure)
2.3 The Run-Time Stack
- a stack data structure (last-in, first-out) a natural fit for managing run-time procedure memory
- only the most recent procedure call needs to allocate space for local variables or make a new procedure call
- when a procedure returns, we want to free the memory used by this most recent call
- hence it's a natural fit to push and pop procedure data from a stack

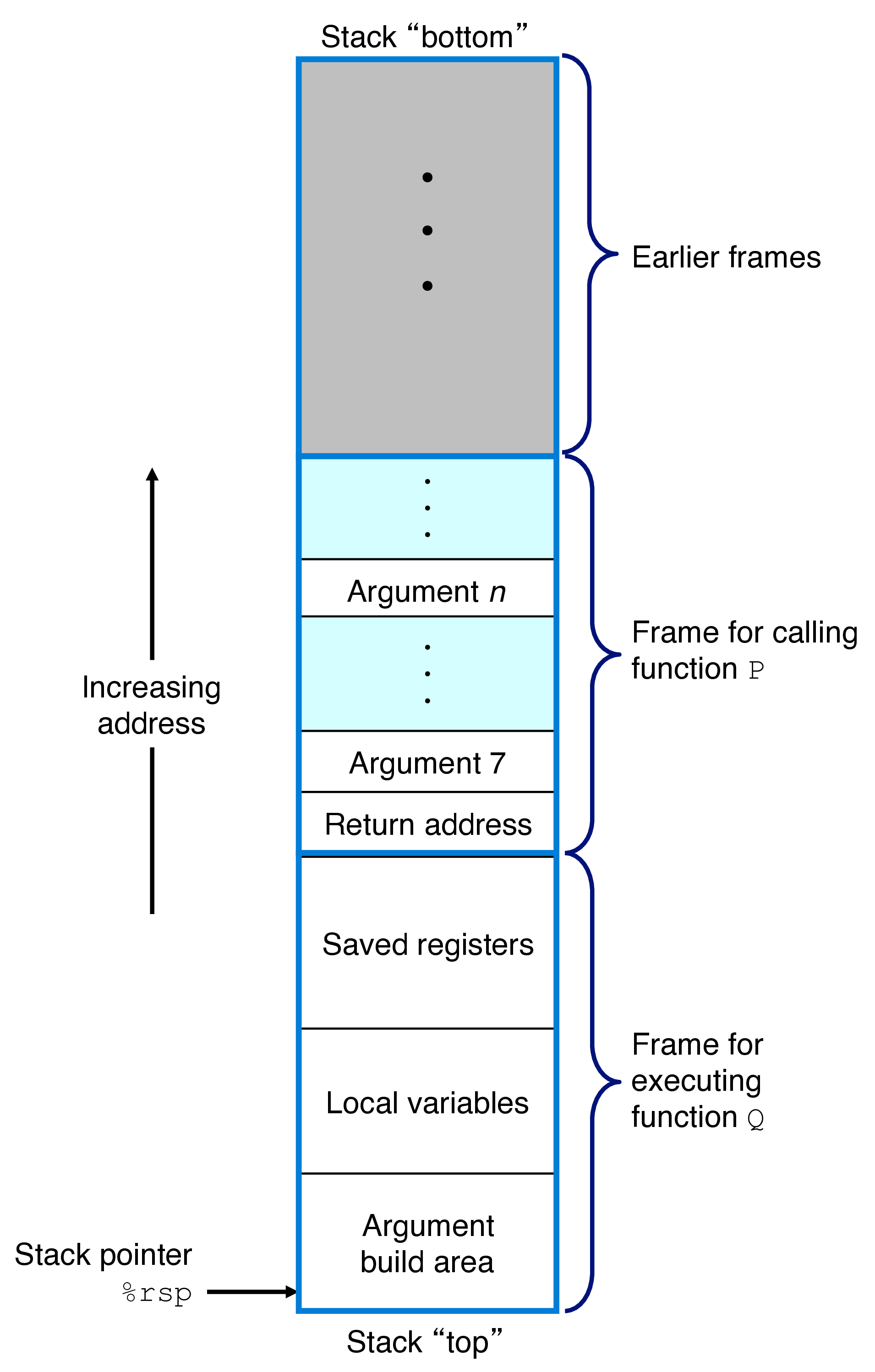

- when a procedure allocates space on the stack it is called that procedure's stack frame
- x86-64 only allocates what a procedure actually needs
- if a procedure's local variables can all be held in registers and it calls no other procedures, no stack frame is needed
2.4 Control Transfer
- processor needs to know where it should resume execution after a procedure call returns
- the
call
instruction pushes the return address of the following instruction onto the stack (part of the calling procedure's stack frame) and sets the instruction pointer (%rip
)to the start of the new procedurecall
operand can either be direct (a label) or indirect (*
followed by one of the standard operand formats)
- the
ret
instruction pops the return address off the stack and copies it to%rip
- the
2.4.1 Example in gdb
#include <stdio.h> #define MAX_INPUT_LEN 100 long square(long x) { return x * x; } int main() { char input[MAX_INPUT_LEN]; printf("enter a number: "); fgets(input, MAX_INPUT_LEN, stdin); // read from the command line, store as a string in input long num; sscanf(input, "%ld", &num); // parse input as a long, store in num printf("your number squared is %ld\n", square(num)); }
3 Exercise
Top of the stack at 0x200
, 8 bytes stored there contain 0x20
. What changes about registers or memory as a result of popq %r8
?1
4 Practice
CSPP practice problem 3.32 (p. 244)
Footnotes:
1
popq
copies the top 8 bytes of the stack to %r8
, so %r8
will now contain 0x20
.
This also "pops" these 8 bytes off the stack, so 8 is added to %rsp
, making it 0x208
(remember, the stack grows down to lower memory addresses, so moving %rsp
up in memory shrinks the stack).
Nothing changes in terms of values stored in memory — %rsp
tracks the top of the stack, but the system doesn't zero-out popped values or anything like that.
