# CS 208 s20 — x86-64 Control Flow: Conditionals

## Table of Contents

## 1 Review

What effect do these instructions

: leaq (%rdx,%rcx,4), %rax movq (%rdx,%rcx,4), %rbx leaq (%rdx), %rdi movq (%rdx), %rsi

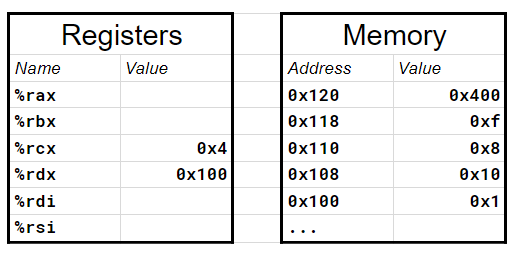

have on register values give the initial state below?^{1}

## 2 Video Lecture

Watch the video lecture for the material outlined below: https://carleton.hosted.panopto.com/Panopto/Pages/Viewer.aspx?id=4d3e29a2-ea32-48a8-a852-abaa00fe7865.

## 3 Condition Codes

- the basis for
*control flow*within a program (i.e., determining which instruction gets executed next)- special
`%rip`

register stores*instruction pointer*

- special
- most useful codes:
`CF`

: carry flag. Set when an operation generated a carry out of the most significant bit. Used to detect unsigned overflow`ZF`

: zero flag. Set when an operation yields 0`SF`

: sign flag. Set when an operation yields a negative value`OF`

: overflow flag. Set when an operation causes a two's complement overflow, negative or positive

- all the standard arithmetic instructions set these flags except for
`leaq`

`cmp`

and`test`

instructions set condition codes`cmp`

subtracts first operand from second`test`

ands operands (usually the same quantity is both operands, check if its zero, positive, negative)

### 3.1 Accessing the Condition Codes

- class of
`set`

instructions to set a single byte to 1 or 0 based on one or more condition codes (figure 3.14, p. 203)- in the case where
`cmp b, a`

was executed - when \(a=b\), then \(a-b=0\), so
`ZF`

will be set - when \(a < b\), then \(a - b < 0\) (
`SF`

set) or \(a - b\) overflows so the result is positive and`OF`

is set- but both
`SF`

and`OF`

set would indicate \(a\) is positive and \(b\) is negative such that \(a-b\) would overflow to a negative value - hence, less than is detected when
`SF ^ OF`

- but both
- for unsigned \(a < b\), \(a - b\) would cause a carry out of the most significant bit, setting
`CF`

- in the case where

### 3.2 Exercises

#### 3.2.1 Which condition codes indicate \(a > b\)?

- not less than and not equal
`~(SF ^ OF)`

and`~ZF`

`~(SF ^ OF) & ~ZF`

#### 3.2.2 Translate this C code to assembly

int gt(long x, long y) { return x > y; }

Register | Use |
---|---|

`%rdi` |
1st argument (`x` ) |

`%rsi` |
2nd argument (`y` ) |

`%rax` |
return value |

gt: cmpq %rsi, %rdi setg %al movzbl %al, %eax ret

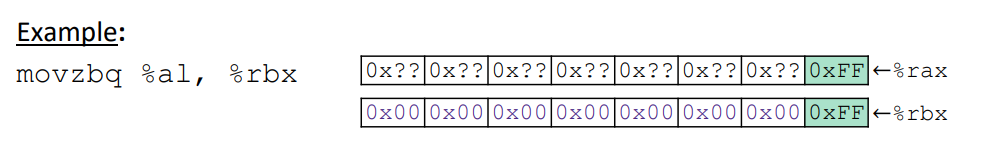

#### 3.2.3 `movz`

and `movs`

- when moving data from a smaller source to a larger destination, can specify zero extension or sign extension
- destination must be a register

`movzSD`

/`movsSD`

`S`

is the size of the source (`b`

or`w`

)`D`

is the size of the destination (`w`

,`l`

, or`q`

)

## 4 Jump Instructions

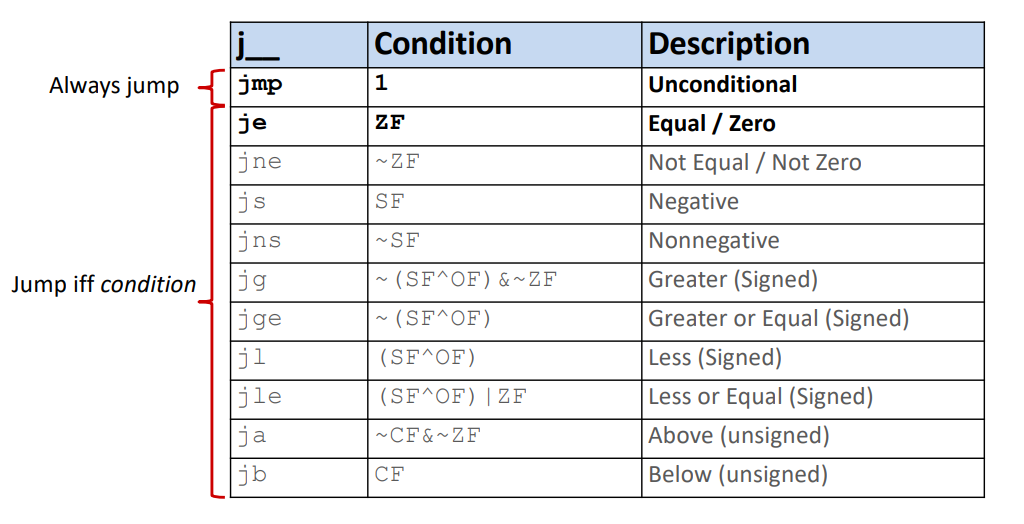

- class of
`jump`

instructions move program execution to specified instruction (figure 3.15, p. 206) *direct*jumps encode the jump target in the instruction*indirect*jumps read the jump target from register or memory- written with a
`*`

preceding the operand

- written with a
*conditional*jumps (can only be direct) jump or continue the subsequent instruction based on some combination of condition codes

Instruction | `(op) s, d` |
`test a, b` |
`cmp a, b` |
||
---|---|---|---|---|---|

`jmp` |
Unconditional | ||||

`je` |
`sete` |
"Equal" | `d (op) s == 0` |
`b & a == 0` |
`b == a` |

`jne` |
`setne` |
"Not equal" | `d (op) s != 0` |
`b & a != 0` |
`b != a` |

`js` |
`sets` |
"Sign" (negative) | `d (op) s < 0` |
`b & a < 0` |
`b - a < 0` |

`jns` |
`setns` |
(non-negative) | `d (op) s >= 0` |
`b & a >= 0` |
`b - a >= 0` |

`jg` |
`setg` |
"Greater" | `d (op) s > 0` |
`b & a > 0` |
`b > a` |

`jge` |
`setge` |
"Greater or equal" | `d (op) s >= 0` |
`b & a >= 0` |
`b >= a` |

`jl` |
`setl` |
"Less" | `d (op) s < 0` |
`b & a < 0` |
`b < a` |

`jle` |
`setle` |
"Less or equal" | `d (op) s <= 0` |
`b & a <= 0` |
`b <= a` |

`ja` |
`seta` |
"Above" (unsigned >) | `d (op) s > 0U` |
`b & a > 0U` |
`b - a > 0U` |

`jb` |
`setb` |
"Below" (unsigned <) | `d (op) s < 0U` |
`b & a < 0U` |
`b - a < 0U` |

### 4.1 Implementing Conditional Branches with Conditional Control

if (<text-expr>) <then-statement> else <else-statement>

becomes

t = <test-expr>; if (!t) goto false; <then-statement> goto done; false: <else-statement> done:

#### 4.1.1 Exercises

Register | Use |
---|---|

`%rdi` |
1st argument (`x` ) |

`%rsi` |
2nd argument (`y` ) |

`%rax` |
return value |

Exercise 1:

long absdiff(long x, long y) { long result; if (x > y) result = x-y; else result = y-x; return result; }

Which pair of instructions should go on the two blank lines?

absdiff: __________________ __________________ # x > y: movq %rdi, %rax subq %rsi, %rax ret .L4: # x <= y: movq %rsi, %rax subq %rdi, %rax ret

cmpq %rsi, %rdi jle .L4

Exercise 2: compile this code to assembly

long wacky(long x, long y) { long result; if (x + y > 7) { result = x; } else { result = y + 2; } return result; }

wacky: movq %rdi, %rax leaq (%rdi,%rsi), %rdx cmpq $7, %rdx jg .L2 leaq 2(%rsi), %rax .L2: rep ret

### 4.2 Jump Instruction Encodings

- jump target encoded compactly with
*PC relative*representation- specify offset to the address of the immediately following instruction

- compile to binary and disassemble previous exercise (11010 checkbox on godbolt) for an example

### 4.3 (OPTIONAL) Implementing Conditional Branches with Conditional Moves

- Reading: CSPP section 3.6.6
- class of
`cmov`

instructions copy source operand to destination register when the condition holds- same conditions as
`set`

and`jump`

instructions

- same conditions as
- can be more efficient than conditional jumps because the sequence of intructions is predictable
- memory may or may not be moved, but the subsequent instruction is executed regardless
- processors
*pipeline*instructions, meaning they process them in a series of stages (fetching instruction from memory, determining instruction type, reading from memory, performing arithmetic operation, writing to memory, updating program counter) - significant performance benefits from overlapping different stages of sequential instructions
- pipelining in the presence of conditional jumps requires sophisticated
*branch prediction*(modern processors aim for 90% accuracy)

- turn on optimization for previous exercise (
`-O1`

compiler flag) to see an example

## 5 Homework

- CSPP practice problems 3.16 (p. 212) and 3.18 (p. 213)
- Both the Week 3 quiz and lab 1 are due 9pm Wednesday (April 29)

## Footnotes:

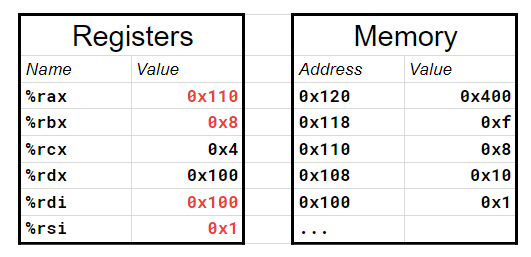

^{1}
