1 Video

Here is a video lecture for the material outlined below. It covers CSPP section 3.9.1 and 3.9.3 (p. 265–267, 273–275). It contains sections on

  1. introduction (0:03)
  2. multi-level arrays (0:56)
  3. spreadsheet visualization (3:10)
  4. assembly for multi-level array access (5:41)
  5. multi-level array exercise (14:11)
  6. struct basics (14:54)
  7. typedef with structs (20:09)
  8. accessing struct fields (22:37)
  9. size of a struct (25:46)
  10. assembly for struct access (28:04)
  11. data alignment (33:34)
  12. alignment for structs (40:36)
  13. struct alignment exercises (50:25)
  14. end notes (54:34)

The Panopto viewer has table of contents entries for these sections. Link to the Panopto viewer: https://carleton.hosted.panopto.com/Panopto/Pages/Viewer.aspx?id=c97fa161-5c36-4d3c-b26d-abbc01028ee4

2 Warmup

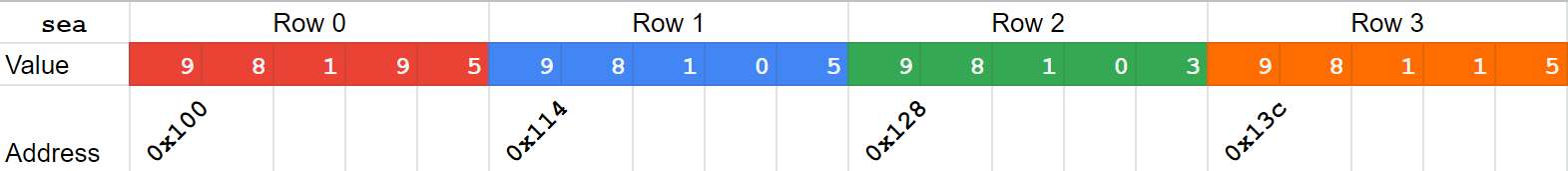

For each of the following array accesses to the array pictured below, determine if it is a valid access and, if so, what value it returns.1

  1. sea[2][5]
  2. sea[4][-1]
  3. sea[0][19]


Which of the following statements is FALSE?2

  1. sea[4][-2] is a valid array reference
  2. sea[1][1] makes two memory accesses
  3. sea[2][1] will always be a higher address than sea[1][2]
  4. sea[2] is calculated using only lea

3 Multilevel Arrays

  • is this multi-dimensional array equivalent to previous sea?
int sea0[5] = {9, 8, 1, 9, 5};
int sea1[5] = {9, 8, 1, 0, 5};
int sea2[5] = {9, 8, 1, 0, 3};
int sea3[5] = {9, 8, 1, 1, 5};
int *sea_m[4] = {sea0, sea1, sea2, sea3};
  • it contains the same 20 ints
  • however, each of the four elements of sea_m is a pointer—none of the elements of sea were pointers
  • within each of the rows (sea0, sea1, sea2, sea3), the 5 ints are allocated as a contiguous block of memory, but each row could be put anywhere
  • see the difference visually in this spreadsheet
  • the C code for get_sea_m_digit is the same as get_sea_digit from topic 15
int get_sea_m_digit (int index, int digit) {
    return sea_m[index][digit];
}
  • but the assembly for accessing an element will be different
get_sea_digit:
        leaq (%rdi,%rdi,4), %rax  # 5 * index
        addl %rax, %rsi           # 5 * index + digit
        movl sea(,%rsi,4), %eax   # *(sea + 4 * (5 * index + digit))
        ret

get_sea_m_digit:
        salq $2, %rsi # rsi = 4*digit
        addq sea_m(,%rdi,8), %rsi # p = sea_m[index] + 4*digit
        movl (%rsi), %eax # return *p
        ret
  • accessing an element now requies two memory accesses
  • the benefit of this multilevel structure is that the rows can be different lengths
  • array access looks the same sea[3][2] and sea_m[3][2], but underneath
    • Mem[ sea + 20*index + 4*digit ] vs Mem[ Mem[ sea_m + 8*index ] + 4*digit ]

3.1 Exercise

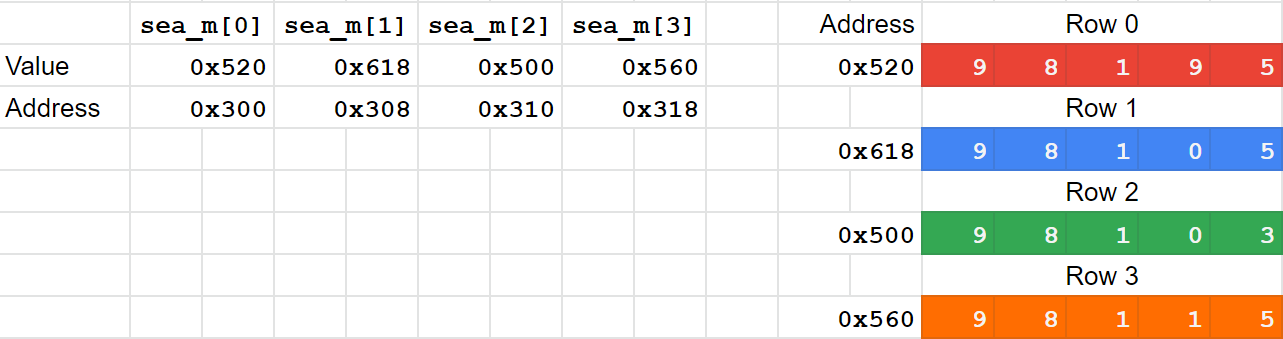

For each of the following array accesses to the array pictured below, determine if it is a valid access and, if so, what value it returns.3

  1. sea[2][3]
  2. sea[1][5]
  3. sea[2][-2]


4 Structures

Two ways to create data types in C: structures (struct) and unions (union) (we won't worry about unions in this course)

// a way of combining different types of data together
struct song {
    char *title;
    int length_in_seconds;
    int year_released;
};
struct song song1;
song1.title = "What is Urinetown?";
song1.length_in_seconds = 213;
song1.year_released = 2001;
  • variable declarations like any other type:
    • struct name name1;
    • struct name *pn;
    • struct name name_ar[3];
  • common to use typedef to give the struct type a more concise alias
    • typedef struct song song_t; makes it so we can use song_t anywhere we would need to use struct song
  • access fields with . or -> in the case of the pointer (p->field is shorthand for (*p).field)
  • like arrays, struct elements are stored in a contiguous region with a pointer to the first byte
    • what will sizeof(struct song) return? (sizeof is a built-in operator that returns the size, in bytes, of a type)
      • 16 bytes
    • compiler maintains the byte offset information needed to access additional fields (e.g., length_in_seconds is 8 bytes from the start of the struct)
    • can find offset of individual fields using offsetof(type, member)

4.1 Examples

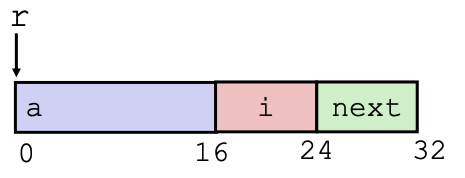

struct rec {
    int a[4];
    long i;
    struct rec *next;
};


  • fields are laid out in memory in same order in which they were declared
  • machine code knows nothing about structures, all just byte offsets from a pointer
long get_i(struct rec *r) {
    return r->i;
}
  • the compiler knows the field i is always 16 bytes (the size of the array of 4 ints a) from the start of the struct:
get_i:
        movq 16(%rdi), %rax
        ret

long* addr_of_i(struct rec *r) {
    return &(r->i);
}
  • note to get the address of the i field, we use lea to add 16 to the address of the struct
addr_of_i:
        leaq 16(%rdi), %rax
        ret

struct rec** addr_of_next(struct rec *r) {
    return &(r->next);
}
  • the next field is 24 bytes from the start of the struct (16 for a + 8 for i)
addr_of_next:
        leaq 24(%rdi), %rax
        ret

int get_array_elem (struct rec *r, long index) {
    return r->a[index];
}
  • since a is located at the start of the struct, accessing an element requires no offset, just normal array indexing
get_array_elem:
        movl (%rdi, %rsi, 4), %eax
        ret

4.2 Data Alignment

  • suppose a processor always fetches 8 bytes from an address that must be a multiple of 8
    • if every double is guaranteed to have a memory address that is a multiple of 8, then it's guaranteed to take only a single operation to read
    • otherwise, it would take two operations if a double were split across two 8-byte blocks
  • this kind of behavior is typical of hardware interfacing between the processor and memory
    • hence, systems institute alignment restrictions to improve memory performance
    • Intel recommends data alignment to improve performance
  • x86-64 alignment principle: any primitive object of \(K\) bytes must have an address that is a multiple of \(K\)
  • this means for structures, the compiler sometimes must insert gaps between fields to maintain alignment (internal fragmentation)
    • even if this padding isn't required within a structure, it sometimes must be added to the end to ensure an array of structures is aligned (external fragmentation)
      • each structure has alignment requirement \(K_{max}\) = largest alignment of any element
      • counts array elements individually as elements

4.2.1 Exercises

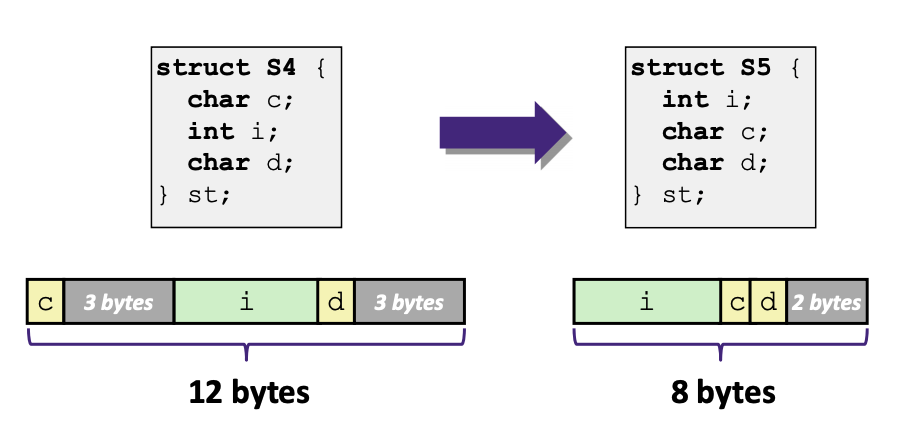

  • why does struct S4 have 3 bytes of padding added after c and after d?4
  • what kinds of fragmentation do struct S4 and struct S5 each have?5

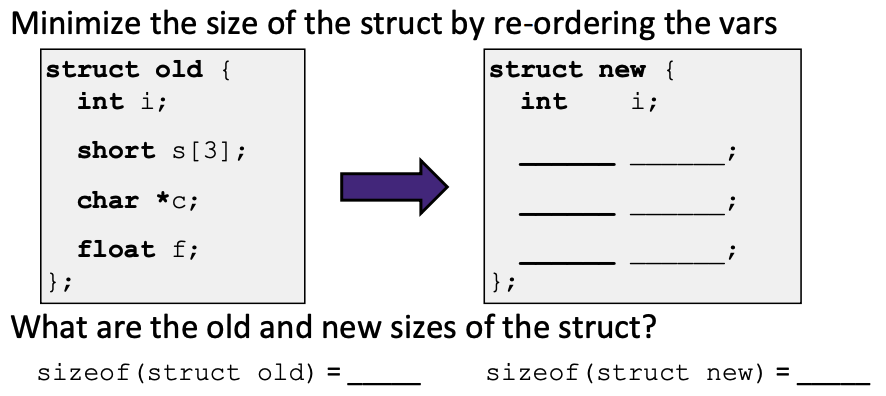

  • how would you reorder the fields of struct old in struct new to minimize the overall size of the struct?6

5 Homework

  1. CSPP practice problems 3.41 (p. 268) and 3.45 (p. 275)
  2. The week 6 quiz is due 9pm Wednesday, May 20
  3. Make a post in the lab 3 check-in forum, due 9pm Monday, May 18 (let this be a reason to start the lab by Monday!)

Footnotes:

1
  1. valid, 9 (start of row 2, then 5 ints forward)
  2. valid, 5 (start of the non-existent row 4, then 1 int backwards, thereby reference the valid element at the end of row 3)
  3. valid, 5 (start of row 0, then 19 ints forward, referencing the final int in the array)
2

2. is the false statement. The assembly for sea[1][1] will compute the address of that specific element and then make a single memory access to that address.

3
  1. valid, 0
  2. invalid, past the end of row 1 (and rows are not adjacent in memory in this multilevel array)
  3. invalid, past the start of row 2 (and rows are not adjacent in memory in this multilevel array)
4

The int i is 4 bytes, so it must have an address that's a multiple of 4. Hence, the compiler adds 3 bytes of padding after the 1-byte char c to achieve this. The size of the struct as a whole must be a multiple of the size of the largest field. Hence, the compiler adds 3 bytes of padding to the end.

5

S4 has both internal and external fragmentation, while S5 has just external.

6
struct new {
    int i;
    float f;
    char *c;
    short s[3];
}

This would eliminate the internal fragmentation and leave just 2 bytes of external fragmentation.

  • sizeof(struct old) = 32 bytes (6 bytes of internal fragmentation, 6 bytes external)
  • sizeof(struct new) = 24 bytes (2 bytes external)
