CS 208 s21 — Parallelism and Concurrency

Here is a video lecture for the material outlined below. It contains sections on

1. Definitions (0:00)
2. Why Parallelism? (1:55)
3. Limits of Parallelism (7:17)
4. Threads (9:52)
5. Instruction-Level Parallelism (17:34)
6. Why Concurrency? (21:36)
7. Synchronization (26:54)

The Panopto viewer has table of contents entries for these sections. Link to the Panopto viewer: https://carleton.hosted.panopto.com/Panopto/Pages/Viewer.aspx?id=6af81424-7cdc-465a-ac6a-ac72013d81bd

• concurrent computing: when the execution of multiple computations (or processes) overlap
  • we need to correctly control access to shared resources
• parallel computing: when the execution of multiple computations (or processes) occur simultaneously
  • using additional resources to produce an answer faster
• concurrency primarily about effective coordination, parallelism primarily about efficient division of labor

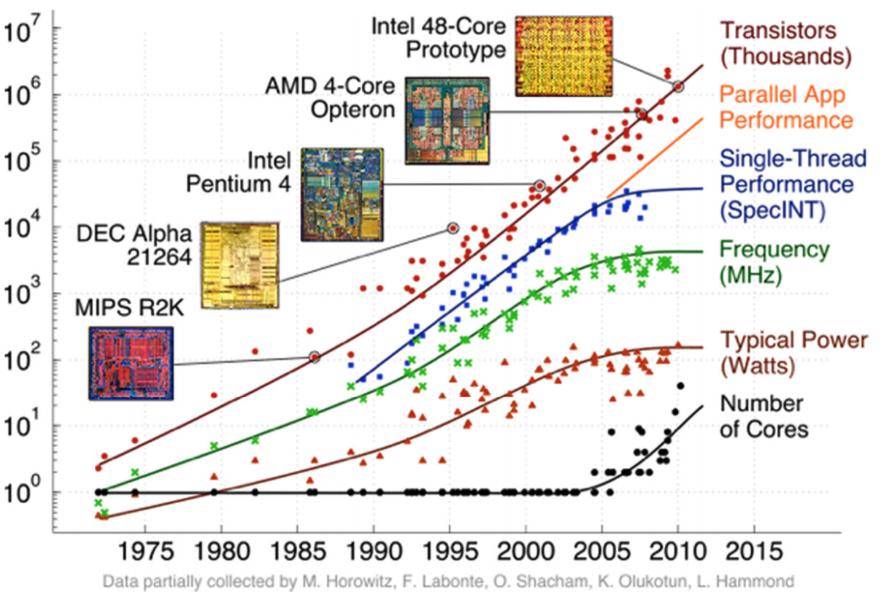

• running into physical limits:

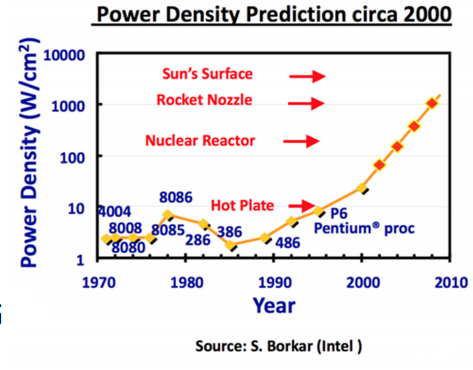

  • power densities over time roughly constant from 1958 to late 1990s
    • grow rapidly starting in late 1990s
  • Since 2000, transistors too small to shrink further (just a few molecules thick)
• heat death
  • power scales with frequency
  • processors stopped around 4 GHz

• solution: slap multiple processors on a single chip
  • continues the trend of more and more transitors, but…
  • requires new programming approach

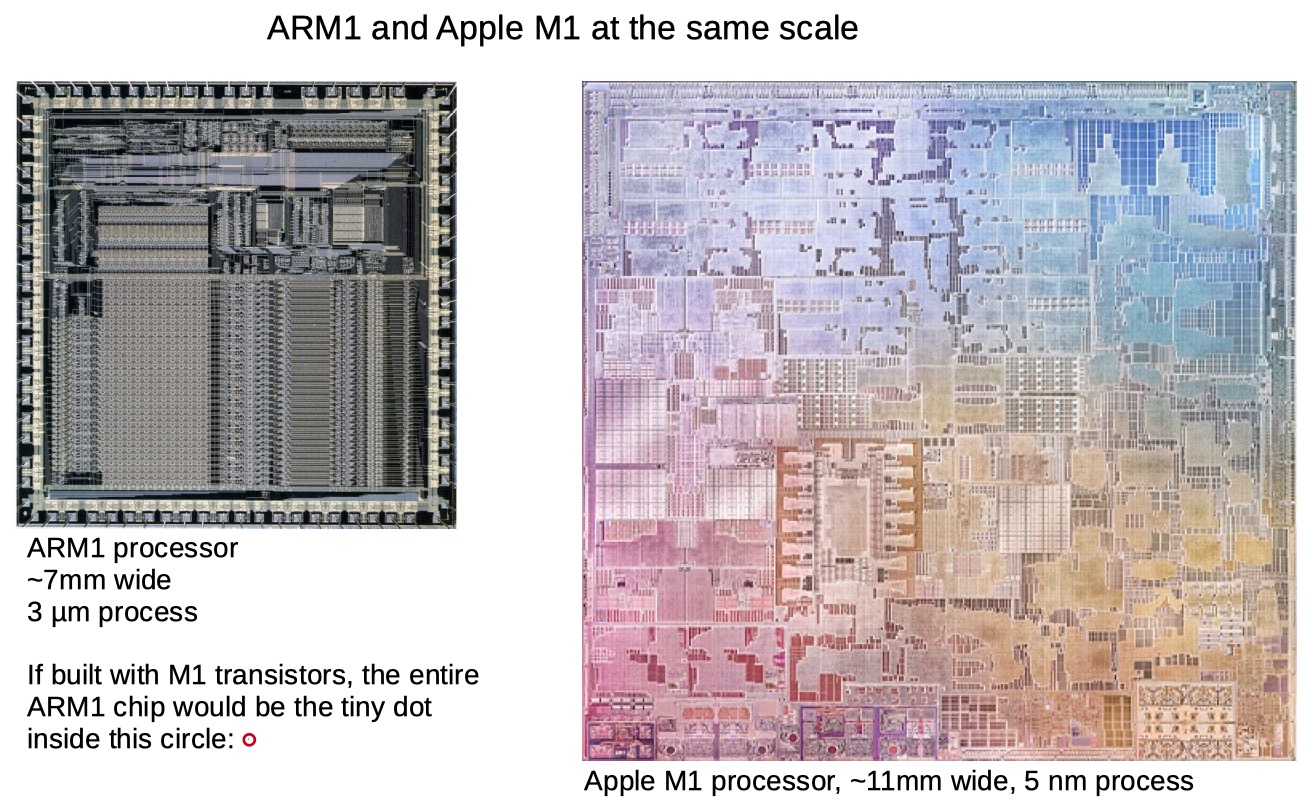

• First ARM processor created by Acorn Computers in 1985 for the BBC Micro computer vs Apple's recently announced M1 processor (also an ARM processor)
  • ARM is an alternative processor architecture to the x86 architecture we've studied
• The M1 is over twice as large physically as the ARM1. It has 16 billion transistors vs 25,000 for the ARM1
• The ARM1 processor ran at 6 megahertz, while the M1 runs at 3.2 gigahertz, over 500 times faster
• While the ARM1 was a single processor, the M1 has 4 high-performance CPU cores, 4 efficiency CPU cores, a 16-core neural engine, and 8-core GPU

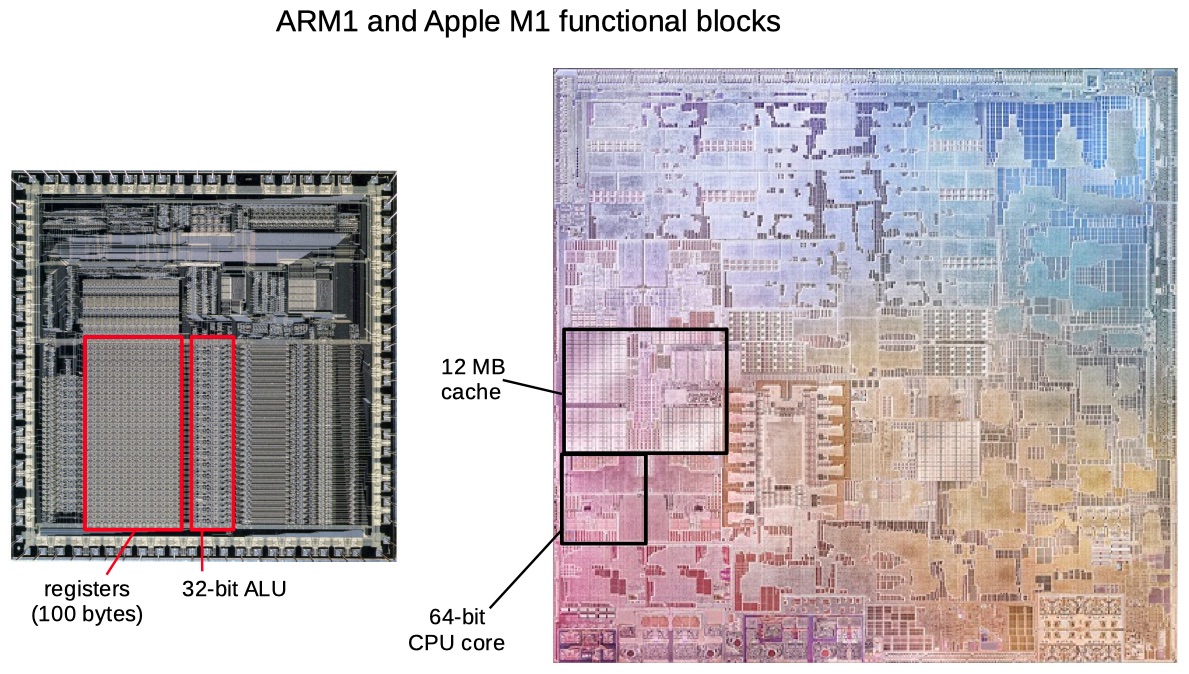

• Looking at the ARM1 die, you see functional blocks such as 100 bytes of registers and a basic 32-bit ALU. On the M1 die, similar-sized functional blocks are a 12-megabyte cache and a complete 64-bit CPU core.
  • ALU = Arithmetic Logic Unit, the part of the processor that performs arithmetic

• is it faster to pick up a deck of cards with two people instead of 1?
  • how about 100 instead of 50?
• there are a finite number of independent tasks, putting a limit on how much can be parallelized
• some tasks need to wait on others, making them inherently sequential
• the amount of speedup that can be achieved through parallelism is limited by the non-parallel portion

• previously, we defined a process as an instance of a running program

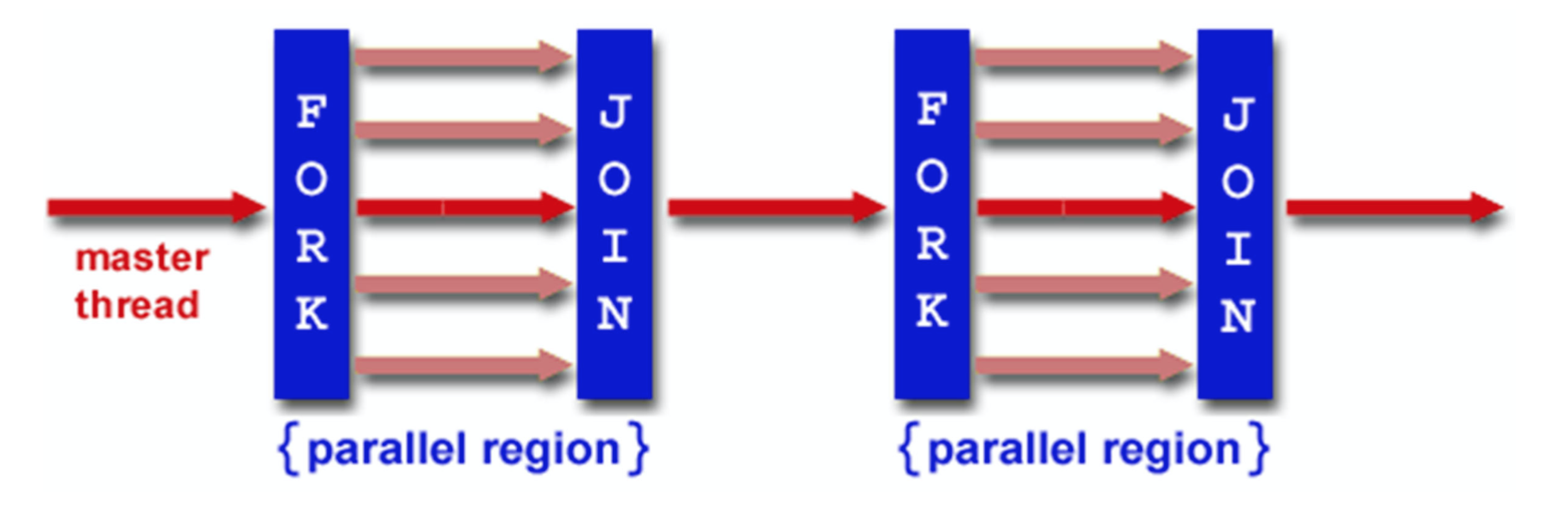

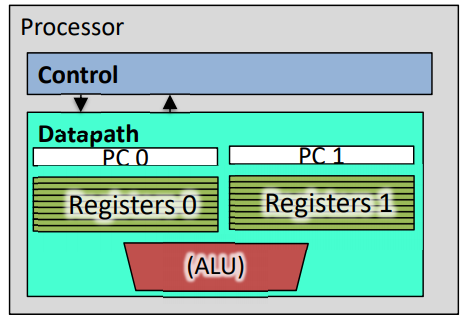

• a thread is a single execution sequence that represents the minimal unit of scheduling
  • one process may contain multiple threads
• four reasons to use threads:
  • program structure: expressing logically concurrent tasks
    • each thing a process is doing gets its own thread (e.g., drawing the UI, handling user input, fetching network data)
  • responsiveness: shifting work to run in the background
    • we want an application to continue responding to input in the middle of an operation
    • when saving a file, write contents to a buffer and return control, leaving a background thread to actually write it to disk
  • performance: exploiting multiple processors
  • performance: managing I/O devices

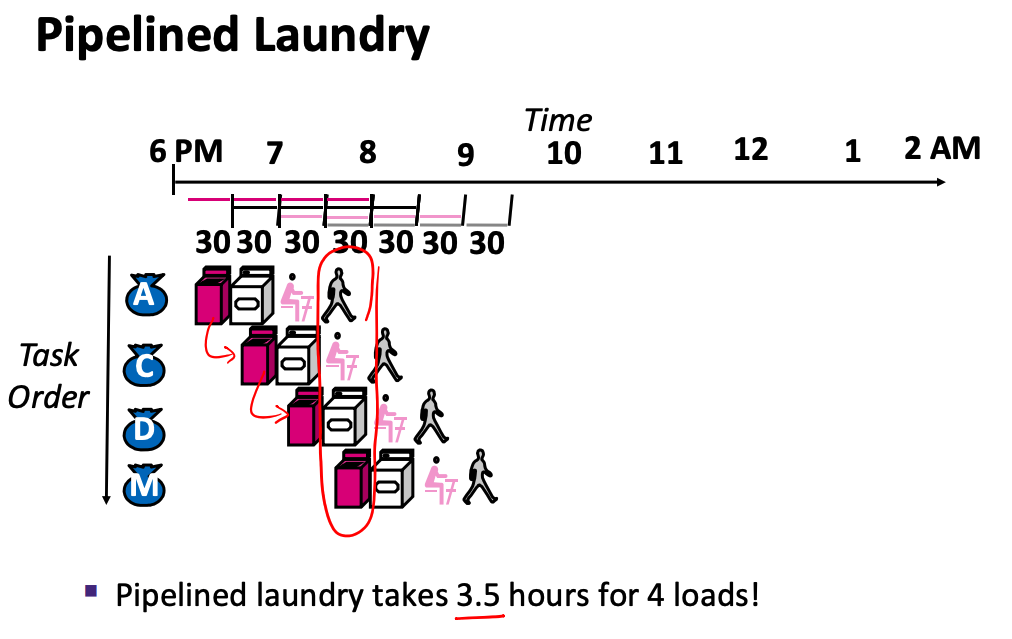

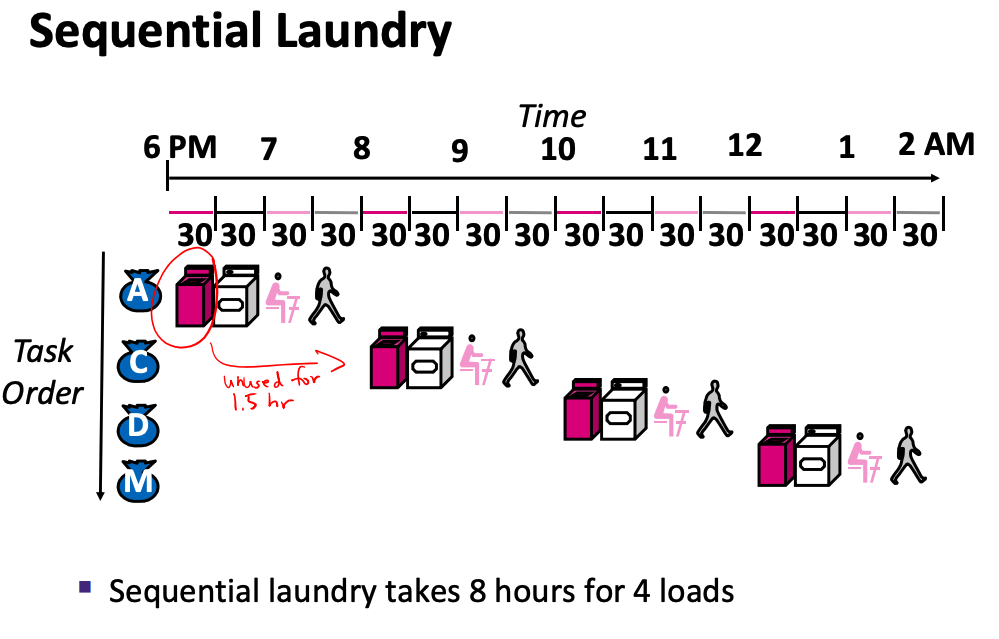

• steps to execute the next x86-64 instruction:
  1. fetch the instruction 400540: 48 01 fe
  2. decode the instruction addq %rdi, %rsi
  3. gather data values read R[%rdi], R[%rsi]
  4. perform operation calc R[%rdi] + R[%rsi]
  5. store result save into %rsi
• each of these steps is roughly associated with a part of the processor
  • each part can work independently

• a multi-threaded program's execution depends on how instructions are interleaved
• threads sharing data may be affected by race conditions (or data races)

• What are the final possible values of x? Result depends on which thread "wins."
• Suppose y=12 initially:

• What are the final possible values of x? Either 13 or 25 depending on which thread goes first
• Suppose x = 0 initially:

• What are the final possible values of x? Remember that register values are preserved for each thread:

• interleaving 1 results in x == 3
• interleaving 2 results in x == 2
• interleaving 3 results in x == 1

• prevent bad interleavings of read/write operations by forcing threads to coordinate their accesses
  • identify critical section of code where only one thread should operate at a time
• pseudocode:

check lock // loop/idle here if locked
acquire lock
CRITICAL SECTION (e.g., change shared variables)
release lock

• problem:

• we need hardware support to make checking and acquiring the lock an atomic operation (impossible to interrupt)
• we want to identify the minimal critical section to maintain parallelism
