CS 208 s22 — x86-64 Control Flow: Loops and Switch Statements

1. Review
2. Loops
3. Switch
4. Practice

1 Review

Take some time to practice translating assembly to C. There's no single correct C code for the given assembly code—multiple valid translations exist.

Exercise 1: long f(long x, long y) ¹

f(long, long):
        subq    %rsi, %rdi
        jne     .L3
        movq    %rdi, %rax
        ret
.L3:
        movq    %rsi, %rax
        ret

Exercise 2: long f(long x, long y) ²

f(long, long):
        cmpq    $2, %rdi
        setle   %dl
        cmpq    %rsi, %rdi
        sete    %al
        testb   %al, %dl
        je      .L3
        movl    $1, %eax
        ret
.L3:
        movl    $2, %eax
        ret

Exercise 3: long f(long *p) ³

f(long *p):
        testq   %rdi, %rdi
        je      .L4
        movq    (%rdi), %rax
        leaq    -10(%rax), %rdx
        testq   %rdx, %rdx
        jle     .L3
        addq    %rax, %rax
        ret
.L3:
        addq    $1, %rax
        ret
.L4:
        movl    $0, %eax
        ret

2 Loops

2.1 Example

int sum_x_to_y(int x, int y) {
    int sum = 0;
    while (x < y) {
        sum += x;
        x++;
    }
    return sum;
}

Loops don't require anything special beyond what we've already seen for conditionals: we have loop conditions (usually implemented via cmp) and jumps to get us back to the top of the loop. Consider the C code above, and fill in the assembly below. %edi will hold x and %esi will hold y. You will use two addl, a cmpl, a jl, a jmp, and a movl.⁴

sum_x_to_y:
  // initialize sum

loop_body:


loop_test:


  ret

Just like conditionals, we can start the journey from C to assembly by translating loops to a form using explicit goto statements to show the necessary jumps.

2.2 do-while loops

do
    <body-statement>
    while (<test-expr>);

becomes

loop:
    <body-statement>
    t = <test-expr>
    if (t)
        goto loop;

2.3 while loops

while (<test-expr>)
    <body-statement>

becomes

    goto test;
loop:
    <body-statement>
test:
    t = <test-expr>
    if (t)
        goto loop;

note the jump-to-the-middle approach to loop implementation
On higher optimization settings, while loops get translated into a guarded-do form
- a conditional branch followed by a do-while loop
- can allow the initial check to be optimized away if the compiler can determine the condition will always hold
here's a C function that takes a number and uses a while loop to compute the factorial of it:

long fact_while(long x){
    long result = 1;
    while (x > 1) {
        result = result * x;
        x = x - 1;
    }
    return result;
}

This function compiles to the following assembly (gcc version 7, -Og flag). It follows the jump-to-the-middle approach.

fact_while:
        movl    $1, %eax
        jmp     .L2
.L3:
        imulq   %rdi, %rax
        subq    $1, %rdi
.L2:
        cmpq    $1, %rdi
        jg      .L3
        rep ret

If we increase the optimization to -O2, we can see how it changes to a guarded-do (initial comparison either jumps over the loop or proceeds directly into the loop body).

fact_while:
        cmpq    $1, %rdi
        movl    $1, %eax
        jle     .L4
.L3:
        imulq   %rdi, %rax
        subq    $1, %rdi
        cmpq    $1, %rdi
        jne     .L3
        rep ret
.L4:
        rep ret

2.4 for loops

C language standard states that in the absence of continue

for (<init-expr>; <test-expr>; <update-expr>)
    <body-statement>

is equivalent to

<init-expr>;
while (<test-expr>) {
    <body-statement>
    <update-expr>;
}

hence, a for loop is then translated using jump-to-the-middle or guarded-do depending on the optimization level
changing the while loop to a for loop in our factorial function doesn't change the assembly at all:

long fact_for(long x){
    long result = 1;
    for(long i = x; i > 1; i--) {
        result = result * i;
    }
    return result;
}

compiles to (gcc version 7, -Og flag)

fact_for:
        movl    $1, %eax
        jmp     .L2
.L3:
        imulq   %rdi, %rax
        subq    $1, %rdi
.L2:
        cmpq    $1, %rdi
        jg      .L3
        rep ret

3 Switch

using a switch statement can make code more readable than a long chain of if/else if/else.

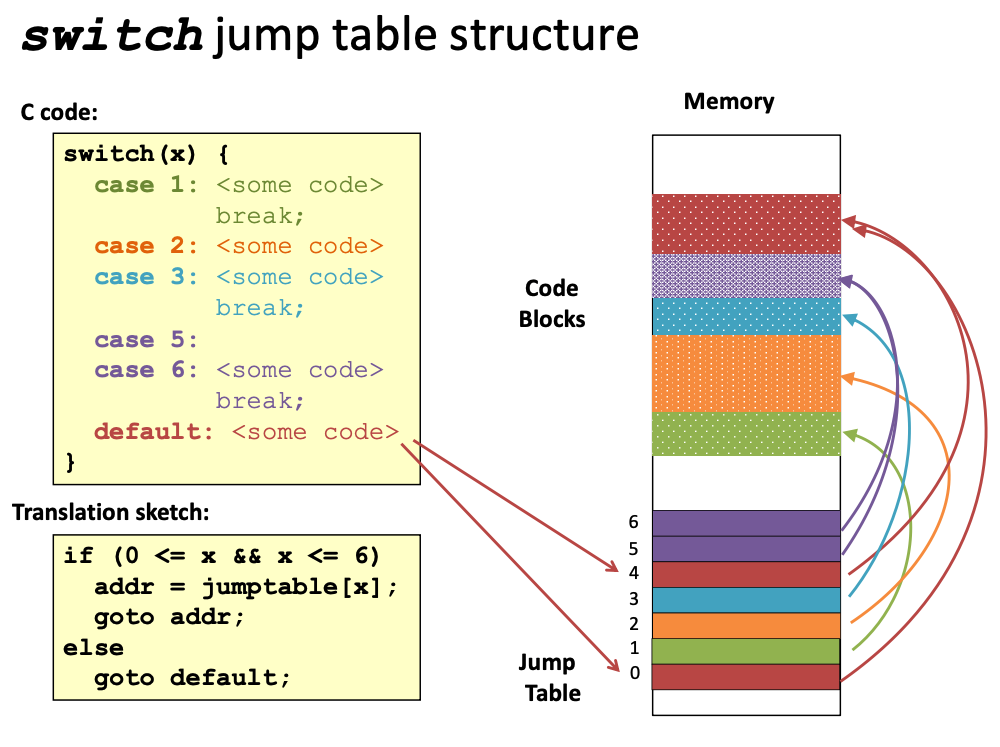

also allows for efficient implementation via a jump table
- array where entry \(i\) is the address of the code to be executed when the switch value is \(i\)
- because it's handled with a single array lookup and jump, the time to perform switch is constant regardless of the number of cases (as opposed to series of if-else)
- best used when there are more than a few cases and where the values are not too far apart
see CSPP figures 3.22 and 3.23 (p. 234-5) for example implementation

long switch_ex(long x, long y, long z) {
    long w = 1;
    switch(x) {
    case 1:
        w = y * z;
        break;
    case 2:
        w = y + z;
    case 3:
        w += z;
        break;
    case 5:
        return y + 7;
    case 6:
        w -= z;
        break;
    default:
        w = 2;
    }
    return w;
}

switch_ex(long, long, long):
        cmpq    $6, %rdi            // compare x to 6
        ja      .L9                 // if x > 6, jump to the label for the default case
        jmp     *.L4(,%rdi,8)       // otherwise, use x as an offset from L4 to select a label to jump to
.L4:
        .quad   .L9
        .quad   .L8
        .quad   .L7
        .quad   .L10
        .quad   .L9
        .quad   .L5
        .quad   .L3
.L8:                                // x == 1
        movq    %rsi, %rax
        imulq   %rdx, %rax
        ret
.L7:                                // x == 2
        leaq    (%rsi,%rdx), %rax
        jmp     .L6
.L10:                               // x == 3, move 1 into w since that matters here
        movl    $1, %eax
.L6:                                // x == 3, fall-through from x == 2
        addq    %rdx, %rax
        ret
.L5:                                // x == 5
        leaq    7(%rsi), %rax
        ret
.L3:                                // x == 6
        movl    $1, %eax            // move 1 into w since that matters here
        subq    %rdx, %rax
        ret
.L9:                                // x == 0, x == 4, x > 6, x < 0
        movl    $2, %eax
        ret

4 Practice

Translate this assembly to C code:⁵

.LC0:
        .string "Hello %d"
main:
        pushq   %rbx
        movl    $0, %ebx
        jmp     .L2
.L3:
        movl    %ebx, %esi
        movl    $.LC0, %edi
        movl    $0, %eax
        call    printf
        addl    $1, %ebx
.L2:
        cmpl    $9, %ebx
        jle     .L3
        movl    $0, %eax
        popq    %rbx
        ret

CSPP practice problems 3.24 (p. 224), 3.26 (p. 228), and 3.30 (p. 236)

Footnotes:

long f(long x, long y) {
    long z = x - y;
    if (z == 0) {
        return z;
    }
    return y;
}

f(long, long):
        subq    %rsi, %rdi  // compute x - y, ok to overwrite x since we don't use it again
        jne     .L3         // jump to L3 when %rdi != %rsi (i.e., x - y != 0)
        movq    %rdi, %rax  // copy z to the return value
        ret
.L3:
        movq    %rsi, %rax  // copy y to the return value
        ret

long f(long x, long y) {
    if (x < 3 && x == y) {
        return 1;
    } else {
        return 2;
    }
}

f(long, long):
        cmpq    $2, %rdi    // perform x - 2, set condition codes
        setle   %dl         // write 1 to the lowest byte of %rdx when x <= 2 (i.e., %dl contains 1 when x < 3)
        cmpq    %rsi, %rdi  // perform x - y, set condition codes
        sete    %al         // write 1 to the lowest byte of %rax when x == y
        testb   %al, %dl    // perform %al & %dl, set condition codes
        je      .L3         // jump to L3 when %al & %dl == 0 (i.e., jump unless both previous set instructions
                            // wrote 1, meaning x < 3 and x == y)
        movl    $1, %eax    // make return value 1
        ret
.L3:
        movl    $2, %eax    // make return value 2
        ret

#include <stdlib.h>  // to provide NULL
long f(long *p) {
    if (p == NULL) {
        return 0;
    }
    if (*p - 10 > 0) {
        return *p + *p;
    } else {
        return *p + 1;
    }
}

f(long *p):
        testq   %rdi, %rdi       // perform p & p, set condition codes
        je      .L4              // jump to L4 if p & p == 0 (i.e, jump if p is NULL)
        movq    (%rdi), %rax     // put *p in the return value
        leaq    -10(%rax), %rdx  // put *p - 10 in %rdx (remember lea uses the value in the register, not memory
        testq   %rdx, %rdx       // perform (*p - 10) & (*p - 10), set condition codes
        jle     .L3              // jump to L3 if (*p - 10) & (*p - 10) <= 0 (i.e., don't jump if *p - 10 > 0)
        addq    %rax, %rax       // return value is now *p + *p
        ret
.L3:
        addq    $1, %rax         // add 1 to return value
        ret
.L4:
        movl    $0, %eax         // set return value to 0
        ret

⁴

sum_x_to_y:
        movl    $0, %eax
        jmp     .L2
.L3:
        addl    %edi, %eax
        addl    $1, %edi
.L2:
        cmpl    %esi, %edi
        jl      .L3
        ret

⁵

#include <stdio.h>

int main() {
    for (int i = 0; i < 10; i++) {
        printf("Hello %d", i);
    }
}
