CS 208 s22 — Data Structure Representation: Arrays

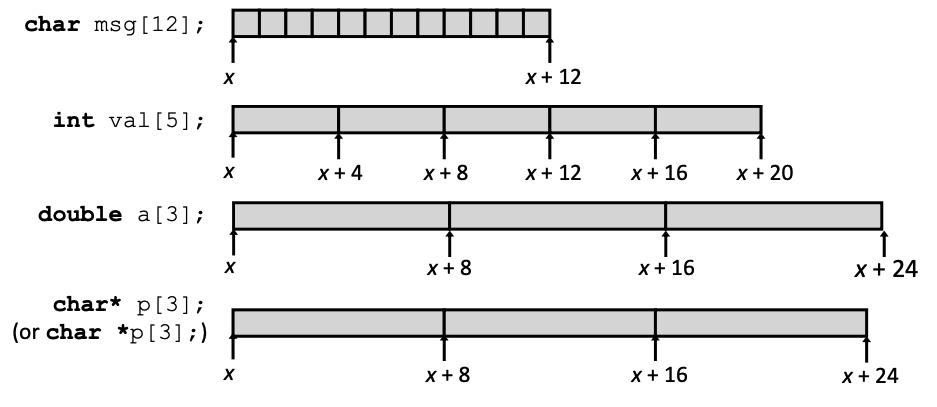

• T A[N] means an array of N elements of type T
• contiguously allocated region—how big in terms of N?¹
• A is a pointer (T*) to the start of the array

• an array is passed to a function as a pointer—this means the size gets lost!

int foo(int arr[], unsigned int size) {
    ... arr[size - 1] ...
}

• arr is really an int* (%rdi can only fit 8 bytes)
• without an explicite size parameter, no way to determine the length of the array

• T A[R][C]
  • 2D array to data type T
  • R rows, C columns
  • What's the array's total size? R*C*sizeof(T)
• single contigious block of memory

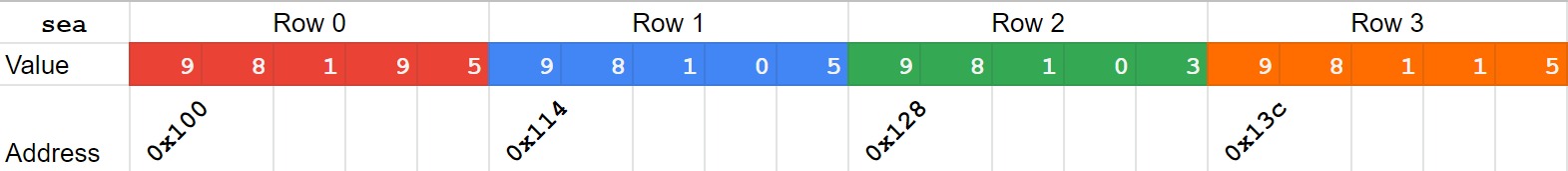

• stored in row-major order
  • all elements in row 0, followed by all elements in row 1, etc.
  • address of row i is A + i*(C * sizeof(T))

int sea[4][5] =
  {{ 9, 8, 1, 9, 5},
   { 9, 8, 1, 0, 5},
   { 9, 8, 1, 0, 3},
   { 9, 8, 1, 1, 5}}

https://docs.google.com/spreadsheets/d/17HGr47X1Q8EqkFmZ4Fv8Y54mO8o-wIPaabQBf_bORZ8/edit?usp=sharing

int* get_sea_zip(int index) {
    return sea[index];
}

get_sea_zip:
        leaq    (%rdi,%rdi,4), %rax  # 5 * index
        leaq    sea(,%rax,4), %rax   # sea + 20 * index
        ret
sea:
        .long   9
        .long   8
        .long   1
        .long   9
        .long   5
        ...

• A[i][j] to access an individual element of a nested array
  • the address works out to A + i*(C*sizeof(T)) + j*sizeof(T) == A + (i*C + j)*sizeof(T)

int get_sea_digit (int index, int digit) {
    return sea[index][digit];
}

get_sea_digit:
        leaq (%rdi,%rdi,4), %rax  # 5 * index
        addl %rax, %rsi           # 5 * index + digit
        movl sea(,%rsi,4), %eax   # *(sea + 4 * (5 * index + digit))

• is this multi-dimensional array equivalent to previous sea?

int sea0[5] = {9, 8, 1, 9, 5};
int sea1[5] = {9, 8, 1, 0, 5};
int sea2[5] = {9, 8, 1, 0, 3};
int sea3[5] = {9, 8, 1, 1, 5};
int *sea_m[4] = {sea0, sea1, sea2, sea3};

• it contains the same 20 ints
• however, each of the four elements of sea_m is a pointer—none of the elements of sea were pointers
• within each of the rows (sea0, sea1, sea2, sea3), the 5 ints are allocated as a contiguous block of memory, but each row could be put anywhere

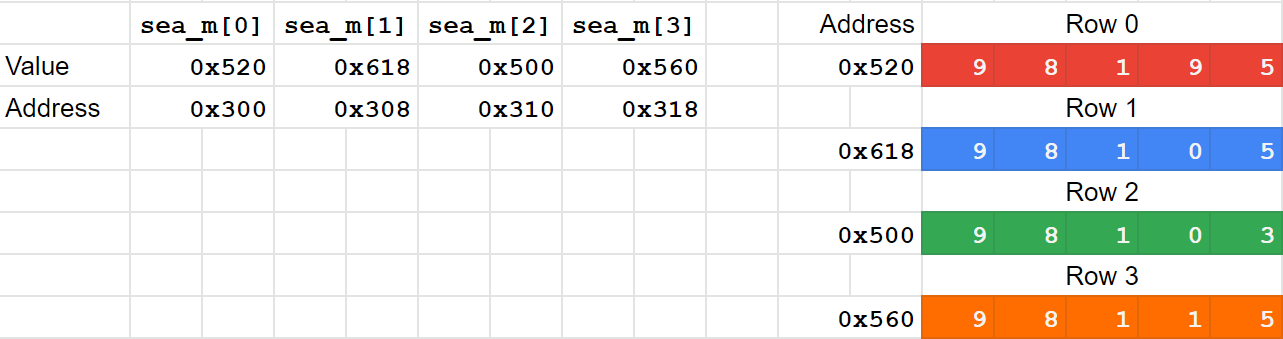

• see the difference visually in this spreadsheet

• the C code for get_sea_m_digit is the same as get_sea_digit for 2D arrays

int get_sea_m_digit (int index, int digit) {
    return sea_m[index][digit];
}

• but the assembly for accessing an element will be different

get_sea_digit:
        leaq (%rdi,%rdi,4), %rax  # 5 * index
        addl %rax, %rsi           # 5 * index + digit
        movl sea(,%rsi,4), %eax   # *(sea + 4 * (5 * index + digit))
        ret

get_sea_m_digit:
        salq $2, %rsi # rsi = 4*digit
        addq sea_m(,%rdi,8), %rsi # p = sea_m[index] + 4*digit
        movl (%rsi), %eax # return *p
        ret

• accessing an element now requies two memory accesses
• the benefit of this multilevel structure is that the rows can be different lengths
• array access looks the same sea[3][2] and sea_m[3][2], but underneath
  • Mem[ sea + 20*index + 4*digit ] vs Mem[ Mem[ sea_m + 8*index ] + 4*digit ]

For each of the following array accesses to the array pictured below, determine if it is a valid access and, if so, what value it returns.²

1. sea[2][5]
2. sea[4][-1]
3. sea[0][19]

Which of the following statements is FALSE?³

1. sea[4][-2] is a valid array reference
2. sea[1][1] makes two memory accesses
3. sea[2][1] will always be a higher address than sea[1][2]
4. sea[2] is calculated using only lea

For each of the following array accesses to the array pictured below, determine if it is a valid access and, if so, what value it returns.⁴

1. sea[2][3]
2. sea[1][5]
3. sea[2][-2]

• register uses: %rax, %rsp, %rdi, %rsi, %rdx, %rcx, %r8, %r9
• starting lab 2
  • hacking vs analyzing
  • either way, practice the skill of finding the relevant detail and ignoring the rest
• basic commands: r(un), b(reak), stepi (si), nexti (ni), c(ontinue), layout asm, layout reg, disas, p(rint), x, finish
• blank line at the end of defuse.txt
• push/pop/moving %rsp at the beginning and end of functions
• sscanf

• Get started with these commands:

wget http://cs.carleton.edu/faculty/awb/cs208/s22/notes/gdb-activity.tar
tar xvf gdb-activity.tar
cd gdb-activity
make

• Try running the program with ./gdb-activity, what happens?
• Open gdb-activity.c

#include <string.h>
#include <stdlib.h>
#include <stdio.h>

int compare(int a, int b);

int main(int argc, char** argv)
{
    int a, b, n;
    char input[100];
    printf("enter good args: ");
    if (fgets(input, 100, stdin) == NULL) {
        printf("I said good args\n");
    }

    n = sscanf(input, "%d %d", &a, &b);
    if (n == 2 && compare(a,b) == 1) {
        printf("good args!\n");
    }
    else {
        printf("bad args, try harder!\n");
    }
    return 0;
}

Observations:

• four functions are called: printf, fgets, sscanf, and compare
  • the first three are C library functions (since they aren't declared anywhere, they must come from the #include of library headers)
  • look each library function up in the terminal with man 3 FUNCTION, or consult cplusplus.com/FUNCTION (the latter is often easier to understand)
• to get the program to print "good args!", we need fgets to return something other than NULL, have sscanf return 2, and have compare(a, b) return 1
  • fgets will read from the command line (stdin) and store the string in input, up to 100 characters
    • only returns NULL on failure, so we probably don't have to worry about that
  • sscanf is a super useful function: it parses a string (the first parameter) according to a format string given by the second parameter
    • %d is the format specifier for an integer, so this sscanf call will parse input as two integers separated by a space
    • the parsed items (i.e., each %d) will be written to the corresponding pointers provided as arguments after the format string
      • so the first integer in input will be stored in a and the second will be stored in b
  • compare is actually implemented in raw assembly in gdb-activity.s

• Lets use gdb to get a sense for how everything is fitting together. (This tutorial video goes over using gdb if you want to review.)
• Running disas compare from within gdb gives

0x00000000004006d7 <+0>:     push   %rbx
0x00000000004006d8 <+1>:     mov    %rdi,%rbx
0x00000000004006db <+4>:     add    $0x5,%rbx
0x00000000004006df <+8>:     add    %rsi,%rbx
0x00000000004006e2 <+11>:    cmp    $0xd0,%rbx
0x00000000004006e9 <+18>:    sete   %al
0x00000000004006ec <+21>:    movzbq %al,%rax
0x00000000004006f0 <+25>:    pop    %rbx
0x00000000004006f1 <+26>:    retq

• We can reverse engineer the C code to be something like

int compare(int a, int b) {
    return a + b + 5 == 0xd0; // we add %rdi, %rsi, and 5 together in %rbx and then compare it to $0xd0
                              // sete writes 1 to the given register if the cmp indicates the operands are equal
                              // since this is the return value, and we want compare to return 1,
                              // we should choose inputs to make these equal
}

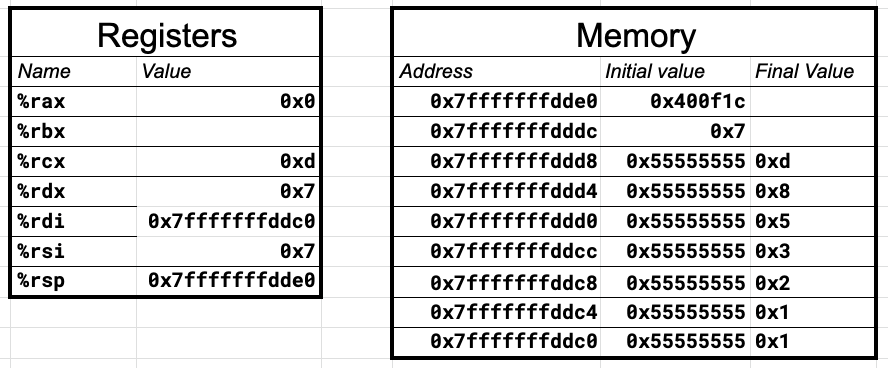

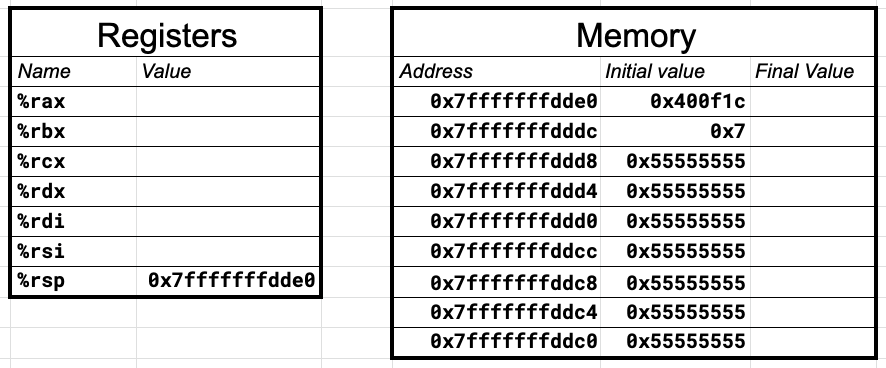

What affect does this assembly program have on registers and memory given the initial values below?⁵

f:
        movl    $1, (%rdi)
        movl    $1, 4(%rdi)
        movl    $2, %edx
        jmp     .L2
.L3:
        movslq  %edx, %rax
        salq    $2, %rax
        movl    -8(%rdi,%rax), %ecx
        addl    -4(%rdi,%rax), %ecx
        movl    %ecx, (%rdi,%rax)
        addl    $1, %edx
.L2:
        cmpl    %esi, %edx
        jl      .L3
        rep ret
main:
        subq    $32, %rsp
        movl    $7, %esi
        movq    %rsp, %rdi
        call    f
        movl    $0, %eax
        addq    $32, %rsp
        ret

Given the C code and the register to variable mapping below, see how far you can get filling in the corresponding assembly:⁶

for (long i = 0; i < size; i++) {
    total += arr[i];
}

init:
        ________________
        ________________
body:
        ________________
        ________________
test:
        ________________
        ________________

CSPP practice problems 3.36 (p. 256) and 3.37 (p. 258)
