CS 208 w20 lecture 12 outline

1 Poll

What gets store in %rax by these instructions?

        call next
next:
        popq %rax

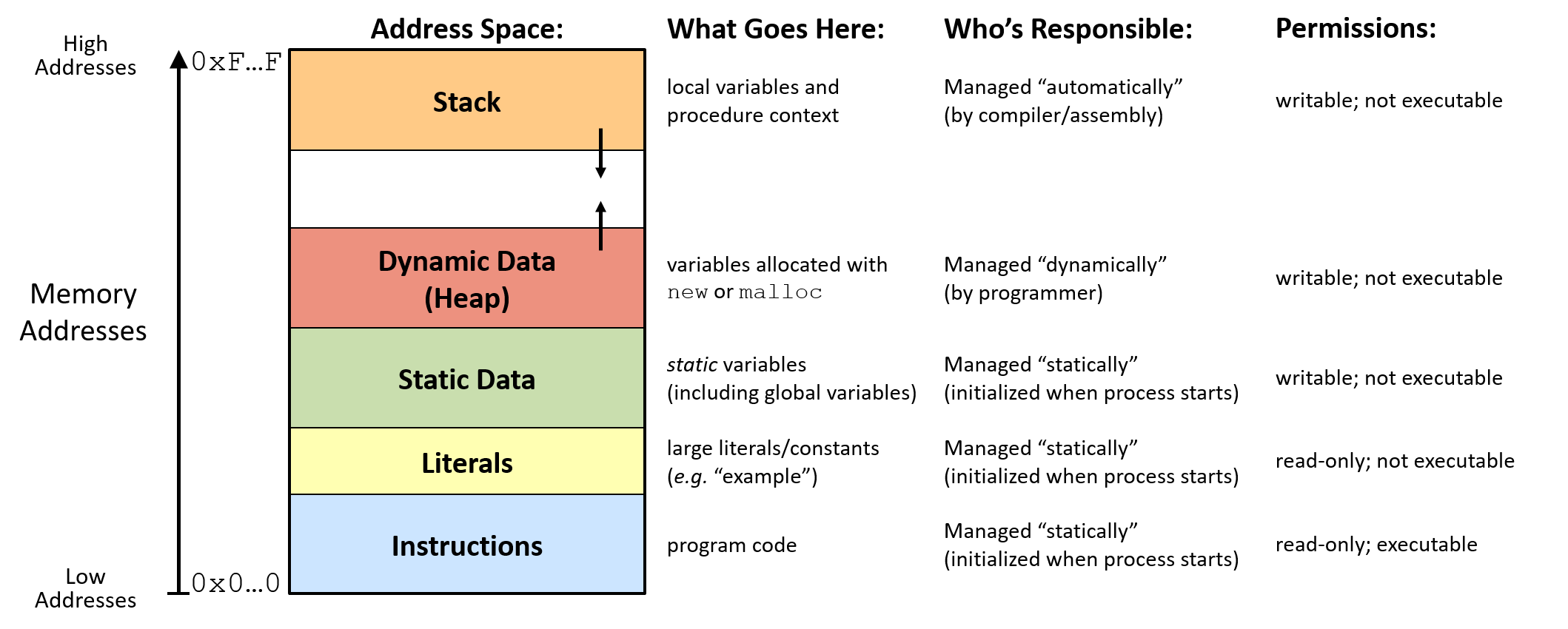

2 Another Look at Memory


3 Procedures Continued

3.1 Data Transfer

  • up to six integer/pointer arguments passed via register
    • in this order: %rdi, %rsi, %rdx, %rcx, %r8, %r9
    • handy mnemonic: Diane's silk dress costs $8 9
  • arguments 7 through \(n\) on the stack
    • what the argument build area is for
  • return value in %rax

3.2 Local Storage on the Stack

  • storage on the stack required when
    • not enough registers
    • code generates a pointer to a local variable (via & operator)
    • local variables that are arrays or structures

3.3 Example

void swap(long *xp, long *yp) {
    long t = *xp;
    *xp = *yp;
    *yp = t;
}

long f(long x, long y) {
    swap(&x, &y);
    return x - y;
}

swap(long*, long*):
        movq    (%rdi), %rax
        movq    (%rsi), %rdx
        movq    %rdx, (%rdi)
        movq    %rax, (%rsi)
        ret
f(long, long):
        subq    $16, %rsp # allocate space on the stack by moving the stack pointer (grows DOWN)
        movq    %rdi, 8(%rsp) # move x onto the stack
        movq    %rsi, (%rsp) # move y onto the stack
        movq    %rsp, %rsi # copy the stack address for y to rsi
        leaq    8(%rsp), %rdi # copy the stack address for x in rdi
        call    swap(long*, long*)
        movq    8(%rsp), %rax
        subq    (%rsp), %rax
        addq    $16, %rsp # free stack space by moving the stack pointer back up
        ret

3.4 Poll


How many stack frames will be created? How many will be present on the stack at one time?

3.5 Local Storage in Registers

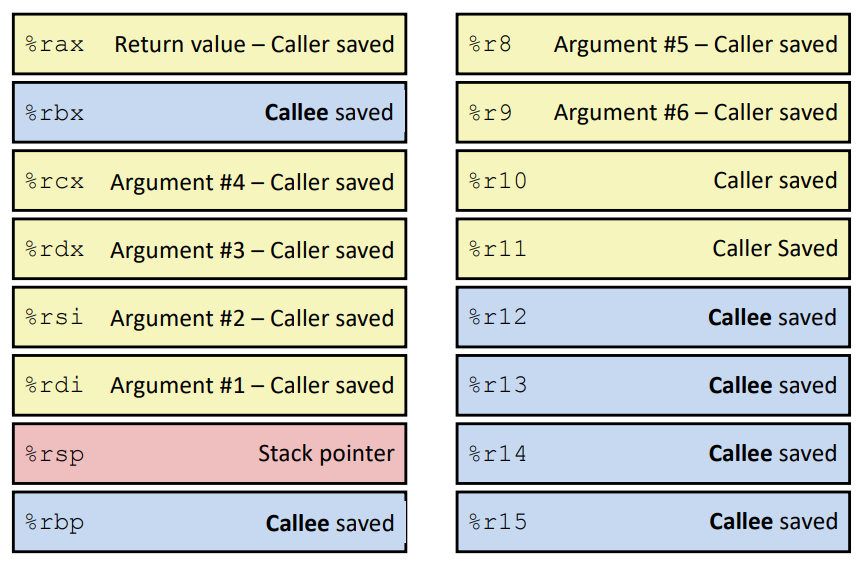

  • want to make sure callee does not overwrite register values the caller plans to use later
  • x86-64 has uniform conventions that all procedures must adhere to
    • %rbx, %rbp, and %r12– %r15 are callee-saved registers (when P calls Q, Q must preserve these values)
      • preserving means not writing to that register or pushing its value onto the stack and popping it off to restore before returning (saved registers portion of the stack frame)
    • all other registers besides the stack pointer %rsp are caller-saved (when P calls Q, Q is free to modify these registers, so P must save any that it needs)


3.6 Recursive Procedures

  • the stack and register conventions facilitate recursion without needing any extra apparatus

3.7 Example in gdb

  • using -tui
  • layout asm then layout regs to get assembly and register views
  • focus cmd to have arrows go through command history
  • winheight regs -LINES to have registers take up less of the screen
  • note %rip changes each step
  • draw stack as we go
  • %rsp changes when we call call_inrc even before sub $0x10,%rsp—why?
  • Print vs eXamine
    • specifying type and width
long increment(long* p, long val) {
    long x = *p;
    long y = x + val;
    *p = y;
    return x;
}

long call_incr() {
    long v1 = 208;
    long v2 = increment(&v1, 124);
    return v1+v2;
}

int main() {
    call_incr();
}

increment:
        movq    (%rdi), %rax
        addq    %rax, %rsi
        movq    %rsi, (%rdi)
        ret
call_incr:
        subq    $16, %rsp
        movq    $208, 8(%rsp)
        movl    $124, %esi
        leaq    8(%rsp), %rdi
        call    increment
        addq    8(%rsp), %rax
        addq    $16, %rsp
        ret
main:
        movl    $0, %eax
        call    call_incr
        movl    $0, %eax
        ret

3.8 Example of Register Saving

long call_incr2(long x) {
    long v1 = x;
    long v2 = increment(&v1, 124);
    return x + v2;
}

call_incr2:
        pushq   %rbx
        subq    $16, %rsp
        movq    %rdi, %rbx
        movq    %rdi, 8(%rsp)
        movl    $124, %esi
        leaq    8(%rsp), %rdi
        call    increment
        addq    %rbx, %rax
        addq    $16, %rsp
        popq    %rbx
        ret

4 Quiz; feedback

  • Average 26.7, median 28
  • did really well overall, especially on matching assembly to C
  • Common confusions:
    • math in hex (0xe0 + 0x40 = 0x120)
    • meaning of %rcx vs (%rcx)
    • two's complment negatives ≠ sign and magnitude
      • -3 is 0b1101 (-8 + 5), not 0b1011


  • lab 1 feedback—lab took much longer than I inteded
    • labs intended to be challenging, but not nearly that time consuming
  • I have adjusted lab 2 grading scheme to hopefully avoid a repeat
    • phases 1–3 16 points each, phases 4–6 worth 4, 3, and 2 points, respectively
    • my goal is to minimze pressure to devote endless time to the lab when you have other things that need to take priority
  • See annoucement about lab 2 compilation mishap
