CS 208 w20 lecture 25 outline

Request	VPN	TLBT	TLBI	TLB hit?	page fault?	PPN	CT	CI	CO	cache hit?	data (byte)
`0x03d4`	`0x0f`	`0x03`	`3`	yes	no	`0x0d`	`0x0d`	`5`	`0`	yes	`0x36`
`0x038f`	`0x0e`	`0x03`	`2`	no	yes	-	-	-	-	-	-
`0x0020`	`0x00`	`0x00`	`0`	no	no	`0x28`	`0x28`	`8`	`0`	no	-
`0x036b`	`0x0d`	`0x03`	`1`	yes	no	`0x2d`	`0x2d`	`a`	`3`	yes	`0x3b`

1 Multi-Level Page Tables

suppose 64-bit virtual addresses (\(n=64\)), 8 KB pages (\(p=13\)), 8 GB physical memory (\(m=33\))
- how many page table entries? 2^n-p = 2⁵¹
- how many bits per PTE? PPN width + management bits = \(m - p + 5\) (valid, dirty, read, write, execute) = 25 bits or about 3 bytes
- we can't actually have 4 million GB worth of page table entries for each process

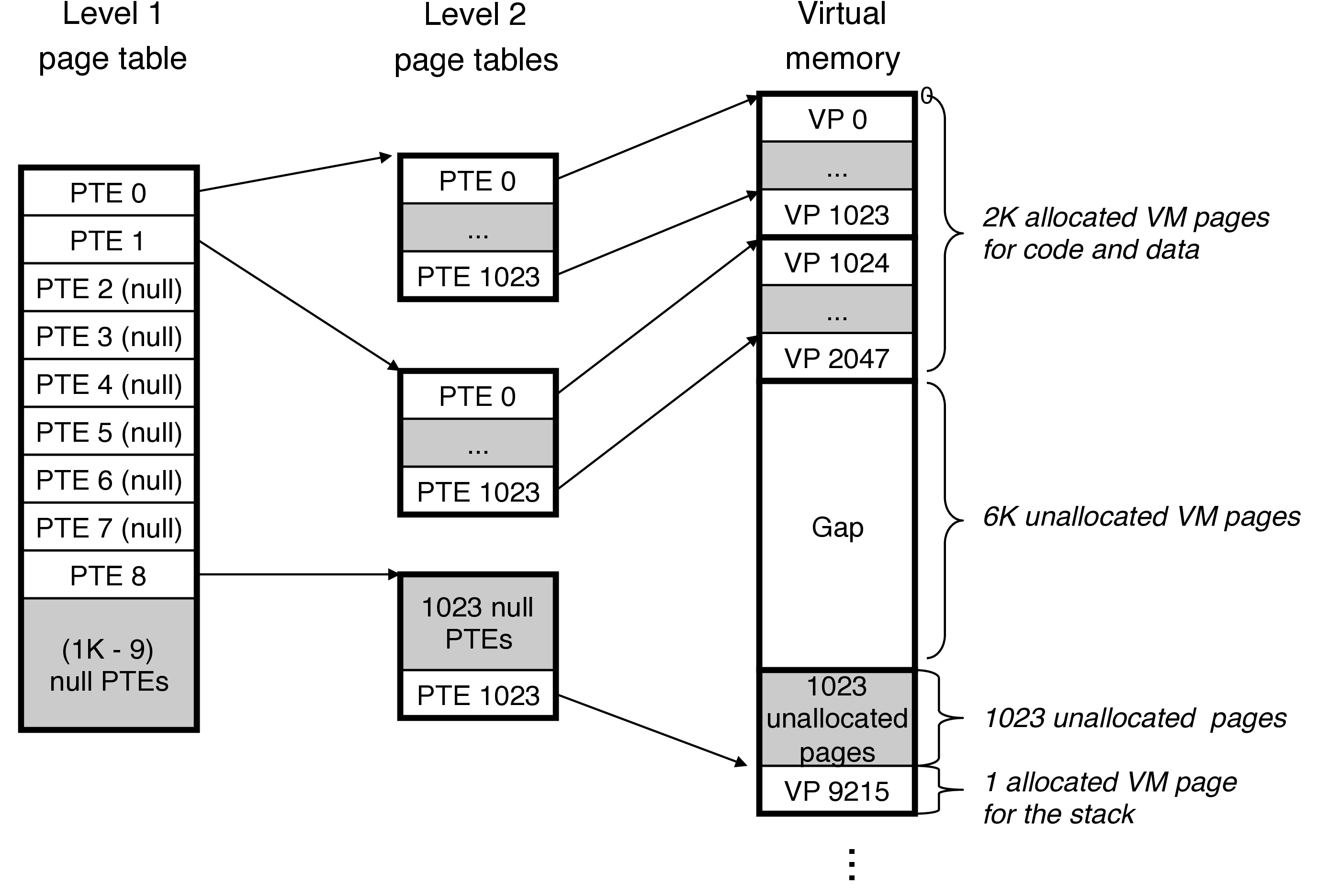

we can use multi-level page tables to reduce memory overhead
- VPN split into \(k\) segments, one for each level of page table
- instead of a million page table entries in memory, most unused, we have have a level 1 table with 1000 entries, and then only have a second level of 1000 for allocated level 1 entries

2 Java vs C

integers, floats, doubles, pointers have the same representation as C
- pointers are called references in Java, much more constrained
- Java specification fixes the sizes of all types
  - e.g., long is 64 bits regardless of machine

2.1 Arrays

initialize elements
keep length in immutable field (array.length)
every access triggers a bounds check
- exception if access is out-of-bounds (a Java exception, not an OS exception)
will checking the array length as part of a loop be a big performance hit?

2.2 Strings

Java uses two-byte Unicode instead of ASCII
- can represent most of the world's alphabets
no null terminator
String objects are read-only

2.3 Objects

data structures always stored by reference, never inline

virtual method table (vtable) provides pointers to class methods
- each instance stores a pointer to its vtable

3 Common Memory Errors

3.1 Error Types

A: derefencing a non-pointer
B: accessing a freed block
C: freeing a freed block
D: failing to free memory (memory leak)
E: no bounds checking (potential buffer overflow)
F: reading uninitialized memory
G: referencing nonexistent variable
H: wrong allocation size

3.2 Case 1

char s[8];
int i;
gets(s);  /* reads "123456789" from stdin */

Error Type	Program Stop Possible?	Fix
E, could overflow `s`	yes	use `fgets`

3.3 Case 2

int* foo() {
    int val = 0;
    return &val;
}

Error Type	Program Stop Possible?	Fix
G, after `foo` returns, `val` will be deallocated	no	pass a reference or use `malloc`

3.4 Case 3

x = (int *) malloc( N * sizeof(int) );
    // manipulate x
free(x);
    ...
y = (int *) malloc( M * sizeof(int) );
    // manipulate y
free(x);

Error Type	Program Stop Possible?	Fix
C, `x` freed twice	yes	probably a typo, should be `free(y)`

3.5 Case 4

N and M are defined elsewhere (#define)

int **p;
p = (int **) malloc( N * sizeof(int) );
for (int i = 0; i < N; i++) {
    p[i] = (int *) malloc( M * sizeof(int) );
}

Error Type	Program Stop Possible?	Fix
H, `p` points to an array of pointers, but `malloc` call allocates space for `sizeof(int)`	yes	should be `malloc( N * sizeof(int*) )`

3.6 Case 5

A is an N × N matrix, x is an N-sized vector (so the product is a vector of size N
N is defined elsewhere (#define)

/* return y = Ax */
int *matvec(int **A, int *x) {
    int *y = (int *) malloc( N * sizeof(int) );
    int i, j;
    for (i = 0; i < N; i++)
        for (j = 0; j < N; j++)
            y[i] += A[i][j] * x[j];

    return y;
}

Error Type	Program Stop Possible?	Fix
F, using `+=` with uninitialized elements of `y`	no	use `calloc(N, sizeof(int))` to allocate zero-initialized memory

3.7 Case 6

scanf signature: int scanf(const char *format, ...)

int val;
...
scanf("%d", val);

Error Type	Program Stop Possible?	Fix
A, `scanf` takes the location where input will be stored, `val` treated as a pointer	yes	should be `scanf("%d", &val)`

3.8 Case 7

x = (int *) malloc( N * sizeof(int) );
   // manipulate x
free(x);
   ...
y = (int *) malloc( M * sizeof(int) );
for (i = 0; i < M; i++)
    y[i] = x[i]++;

Error Type	Program Stop Possible?	Fix
B, `x` accessed after `free(x)`	yes	`free(x)` should come later, after final access to `x`

3.9 Case 8

typedef struct L {
    int val;
    struct L *next;
} list;

void foo() {
    list *head = (list *) malloc( sizeof(list) );
    head->val = 0;
    head->next = NULL;
        // create and manipulate the rest of the list
        ...
    free(head);
    return;
}

Error Type	Program Stop Possible?	Fix
D, nodes after `head` not freed and reference to them is lost	no	iterate through the linked list to free each node
