CS 208 w20 lecture 5 outline

1 `malloc` and `string.h`

Each malloc call, assuming it succeeds, acquires a new chunk of memory from the operating system, returns a pointer to this chunk
free(p) lets the operating system know that the chunk pointed to by p is now available for other programs to use
For lab 0: every call you make to malloc should have a matching call to free in q_free
- Dereferencing freed memory has undefined behavior, so you need to save anything you might need before freeing

#include <string.h> gives you access to some useful functions for working with C strings
http://cplusplus.com is an excellent source of documentation
strlen(s) returns the length of the string (char *) s, not counting the null terminator
strcpy(dest, src) copies the string at dest to src (both arguments are of type char * (pointers to the start of a char array)
- strncpy lets you provide a maximum number of characters to copy

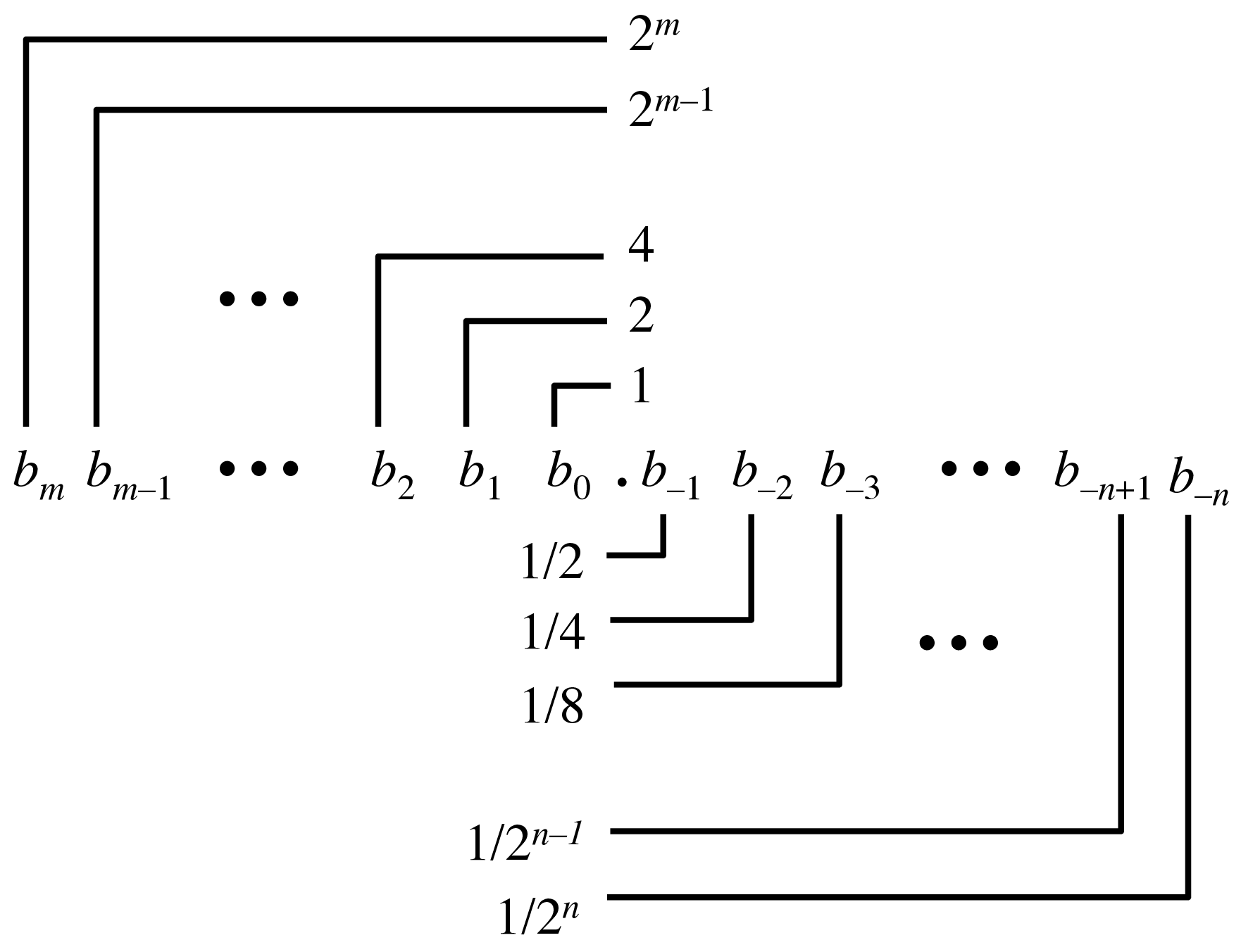

$fractional-binary.png$

Example 0b10.1010 = $1\times2^1 + 1\times2^{-1} + 1\times2^{-3} = 2.625$
Exercise: what's the closest we can get to 1/3 with 6 bits? .010101 (1/4 + 1/16 + 1/64 = 0.328125)

Computer arithmetic that supports this called floating point due to the "floating" of the binary point

In this notation, normalized form means having exactly one non-zero digit to the left of the decimal/binary point
There are multiple ways to represent one billionth (1/1,000,000,000) in base 10:
- Normalized: $1.0\times10^{-9}$
- Denormalized: $0.1\times10^{-8}$, $10.0\times10^{-10}$

We will not cover all the complexities of a 50-page standard
Saved us from the wild west of every manufacturer designing their own
What do we want from a floating point standard?
- Scientists/numerical analysts want them to be as real as possible
- Engineers want them to be easy to implement and fast
- Scientists mostly won, floating-point operations can be several times slower

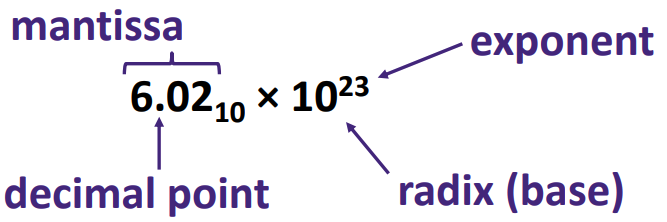

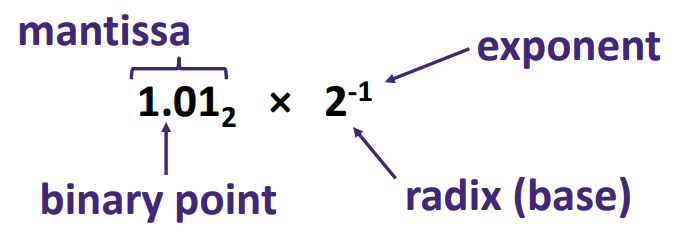

Basic idea: represent numbers in binary scientific notation

$V = (-1)^s \times M \times 2^E$
- sign $s$ indicates positive or negative (sign bit for 0 is special case)
- significand $M$ fractional binary number between 1 and $2 - \epsilon$ or between 0 and $1 - \epsilon$
- exponent $E$ weights by a power of 2 (can be negative power)
Exercise: with 1 sign bit, 3 exponent bits, and 2 significand bits, how close can we get to 1/3
- treat exponent as 3-bit two's complement integer, treat significand bits as fractional part $f$ of the binary number $1.f$
- 0 110 01 (sign exponent significand) yields $1.25 \times 2^{-2} = 0.3125$
- not as close as with a 6-bit binary fraction we could structure however we wanted, but an unstructured representation would require extra bits to locate the binary point
