CS 208 w20 lecture 8 outline

1 Why Study Assembly?

Understand optimizations made by the compiler and how your high-level code might affect them
High-level languages can hide details we need to know
- Ex. investigate exactly where data is stored—can be crucial for concurrent programs
Write more secure software
- Many of the ways programs can be attacked involve exploiting the way programs store their run-time control information

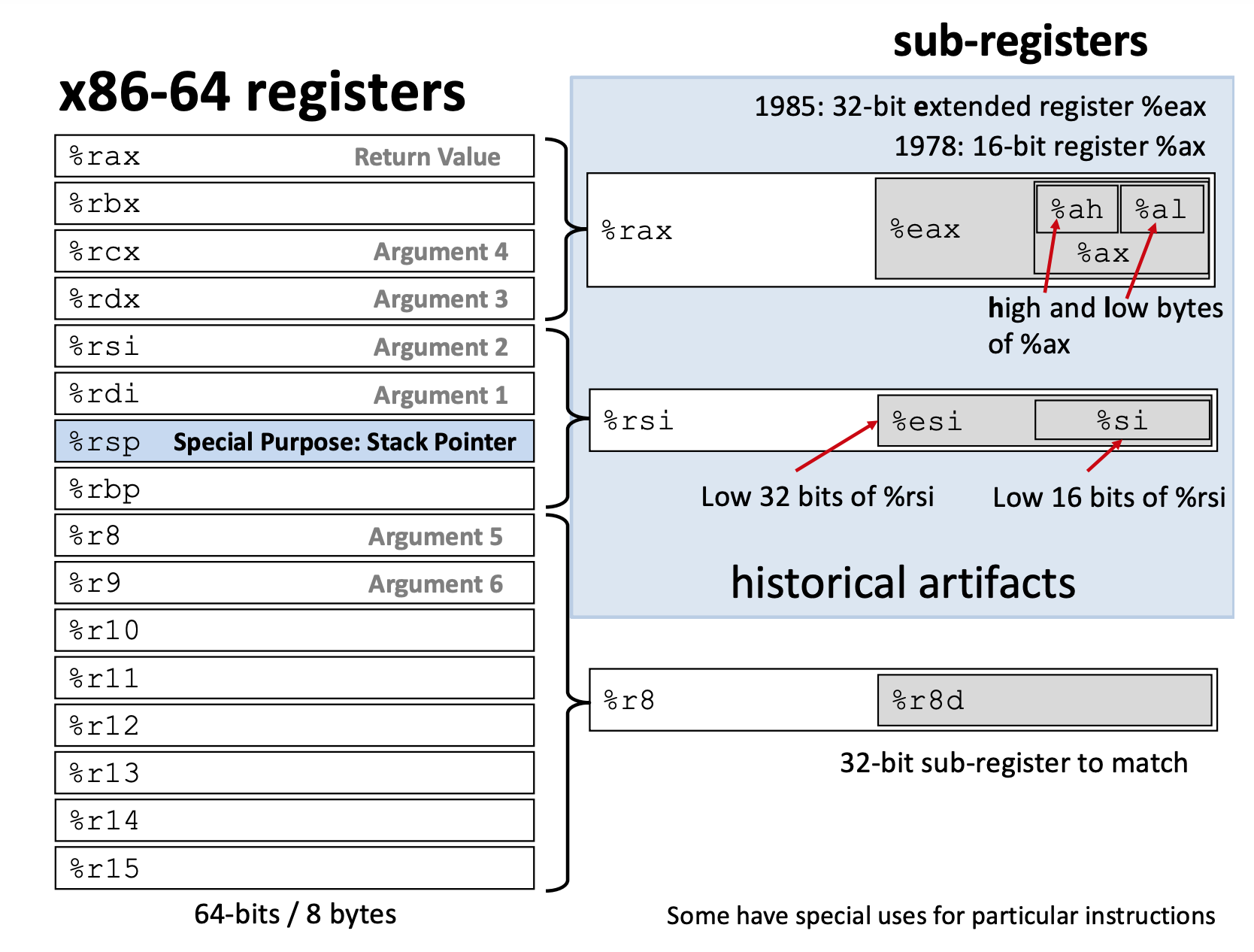

2 Registers

3 Addressing Modes

Table 1: The scaling factor $s$ must be 1, 2, 4, or 8. For indexed mode, $Imm$ may be omitted. For scaled indexed mode, $\mathtt{r}_b$ and/or $Imm$ may be omitted.
Type	Form	Operand value	Name
immediate	$Imm	Imm	immediate
register	$\mathtt{r}_a$	$\mathsf{R}[\mathtt{r}_a]$	register
memory	Imm	$\mathsf{M}[Imm]$	absolute
memory	$(\mathtt{r}_a)$	$\mathsf{M}[\mathsf{R}[\mathtt{r}_a]]$	indirect
memory	$Imm(\mathtt{r}_b)$	$\mathsf{M}[Imm + \mathsf{R}[\mathtt{r}_b]]$	base + displacement
memory	$Imm(\mathtt{r}_b, \mathtt{r}_i)$	$\mathsf{M}[Imm + \mathsf{R}[\mathtt{r}_b] + \mathsf{R}[\mathtt{r}_i]]$	indexed
memory	$Imm(\mathtt{r}_b, \mathtt{r}_i, s)$	$\mathsf{M}[Imm + \mathsf{R}[\mathtt{r}_b] + \mathsf{R}[\mathtt{r}_i]\cdot s]$	scaled indexed

Why only 1, 2, 4, and 8 for scaling factor?

3.1 Exercises

0xf000 in %rdx, 0x0100 in %rcx (omitting leading zeros)

0x8(%rdx) → 0xf008
(%rdx,%rcx) → 0xf100
(%rdx,%rcx,4) → 0xf400
0x80(,%rdx,2) → 0x1e080
What value does %rax hold after these instructions?

:
    mov $0x0070000077070000, %rdx
    mov %edx, %eax
    add %rax, %rax

4 Thinking in Assembly

4.1 Assembly to C

A C function with the signature long f(long *p, long i) compiled to the following assembly code:

f:
    movq    %rsi, %rax
    addq    (%rdi), %rax
    movq    %rax, (%rdi)
    ret

Register	Use
`%rdi`	1st argument (`p`)
`%rsi`	2nd argument (`i`)

Write the C code for this function.

long f(long *p, long i) {
    *p += i;
    return *p
}

How would the assembly change if the return statement were removed?

4.2 `lea` Instruction

"load effective address", but more often "lovely efficient arithmetic"
instead of reading from the memory location given by the source operand, copies the effective address to the destination
- generate pointers for later memory references
- can also do a muliply and an addition in a single instruction
  - leaq 7(%rdx, %rdx, 4), %rax will set %rax equal to 5 * %rdx + 7
destination must be a register

4.3 C to Assembly

Translate this C code to assembly

long arith(long x, long y, long z)
{
    long t1 = x + y;
    long t2 = z + t1;
    long t3 = x + 4;
    long t4 = y * 48;
    long t5 = t3 + t4;
    long rval = t2 * t5;
    return rval;
}

Register	Use
`%rdi`	1st argument (`x`)
`%rsi`	2nd argument (`y`)
`%rdx`	3rd argument (`z`)

arith:
    leaq    (%rdi,%rsi), %rax
    addq    %rdx, %rax
    leaq    (%rsi,%rsi,2), %rcx
    salq    $4, %rcx
    leaq    4(%rdi,%rcx), %rcx
    imulq   %rcx, %rax
    ret

Examples on godbolt.org: https://godbolt.org/z/j_WZwW
