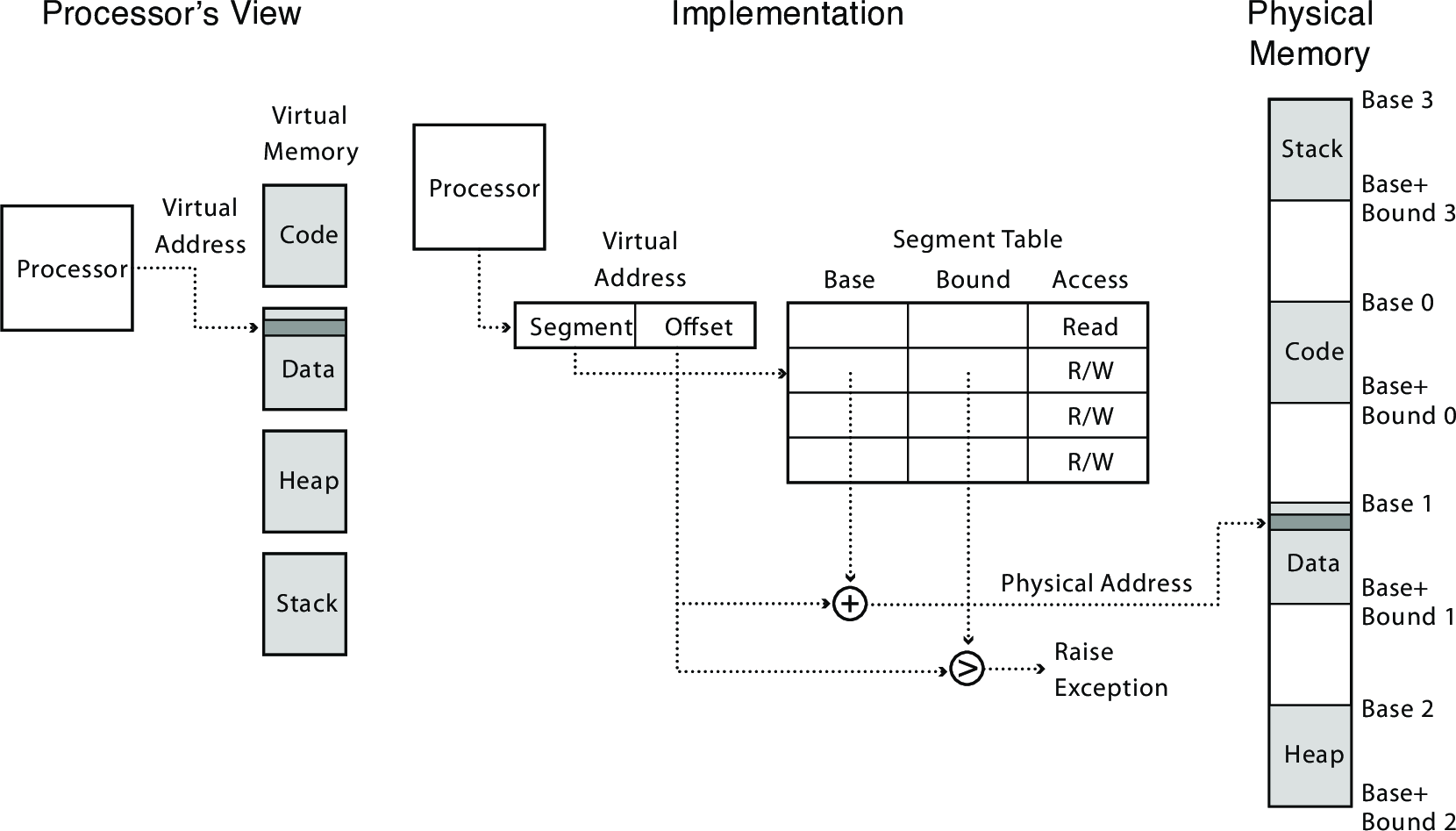

CS 332 w22 — Segmentation and Paging

• Same base, bound, same/different access permissions

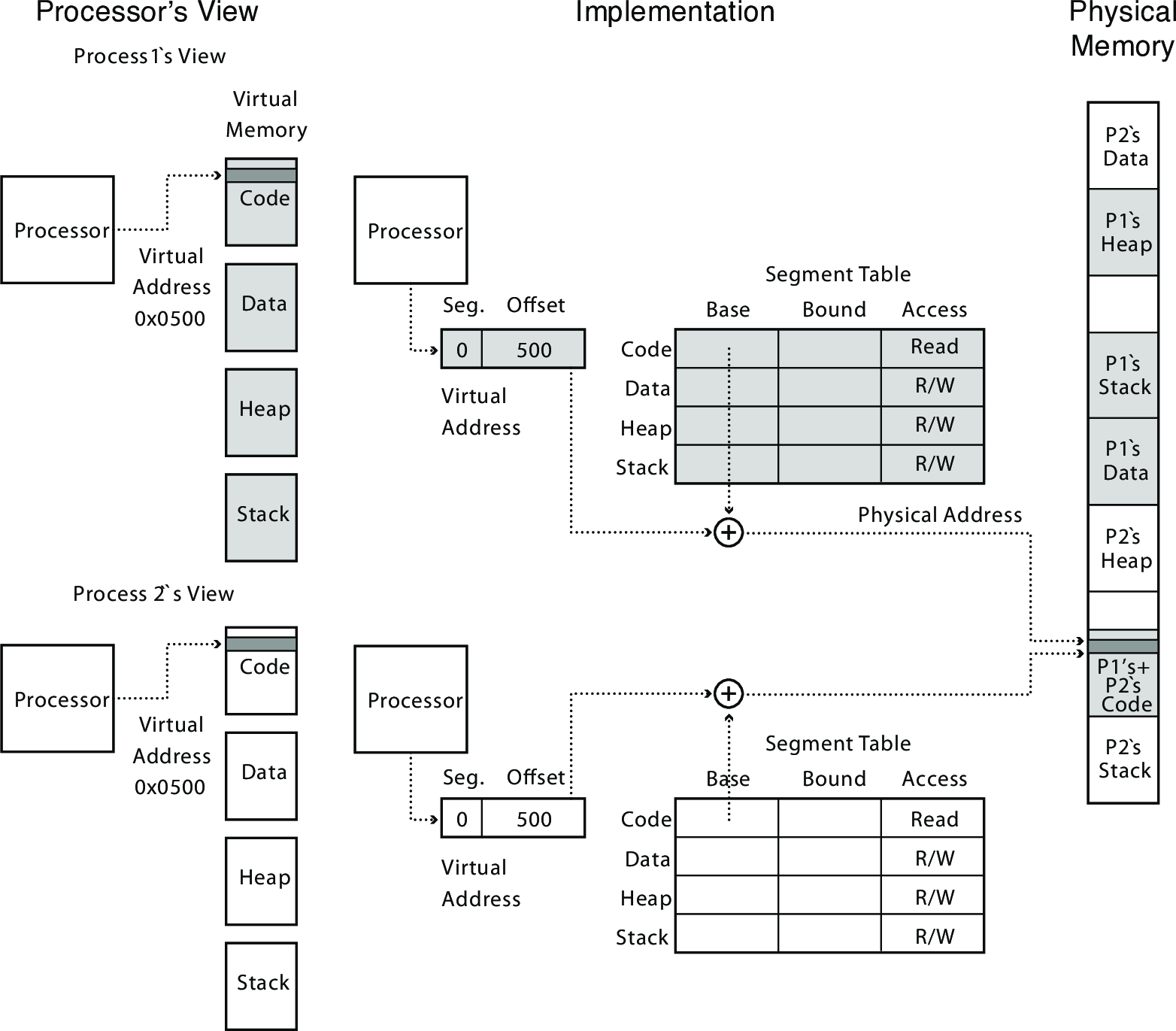

• For example, two instances of the same program sharing a code segment

We can use segmentation to avoid unnecessary copying

• UNIX fork
  • Makes a complete copy of a process
  • If child never uses parent's memory (e.g., just calls exec), a lot of unnecessary copying
• Segments allow a more efficient implementation
  • Copy segment table into child
  • Mark parent and child segments read-only
  • Start child process; return to parent
  • If child or parent writes to a segment (ex: stack, heap)
    • Trap into kernel
    • Make a copy of the segment, change permissions, and resume

• Need to zero out contents of memory before allocation
  • Avoid accidentally leaking information!
  • But only want to bother if memory will actually be used
• How much physical memory is needed for the stack or heap?
  • Only what is currently in use (could be anywhere from KBs to GBs)
  • Reserve larger space, but only zero the first few KB
  • Set the segment bound to just the zeroed portion
• When program uses memory beyond end of stack or expands the heap
  • Segmentation fault into OS kernel
  • Kernel allocates some memory (extends bound)
  • Zeros the memory
  • Modifies the segment table
  • Resumes the process

• Pros:
  • Can share code/data segments between processes
  • Can protect code segment from being overwritten
  • Can transparently grow stack/heap as needed
  • Can detect if need to copy-on-write
• Cons:
  • Complex memory management
    • Need to find chunk of a particular size (e.g., some programs have small data segment, some large)
  • May need to rearrange memory from time to time to make room for new segment or growing segment
    • Compacting free memory can create a lot of processor overhead (i.e., moving segments around to consolidate free space)
    • External fragmentation in physical memory due to wasted space between different-sized chunks

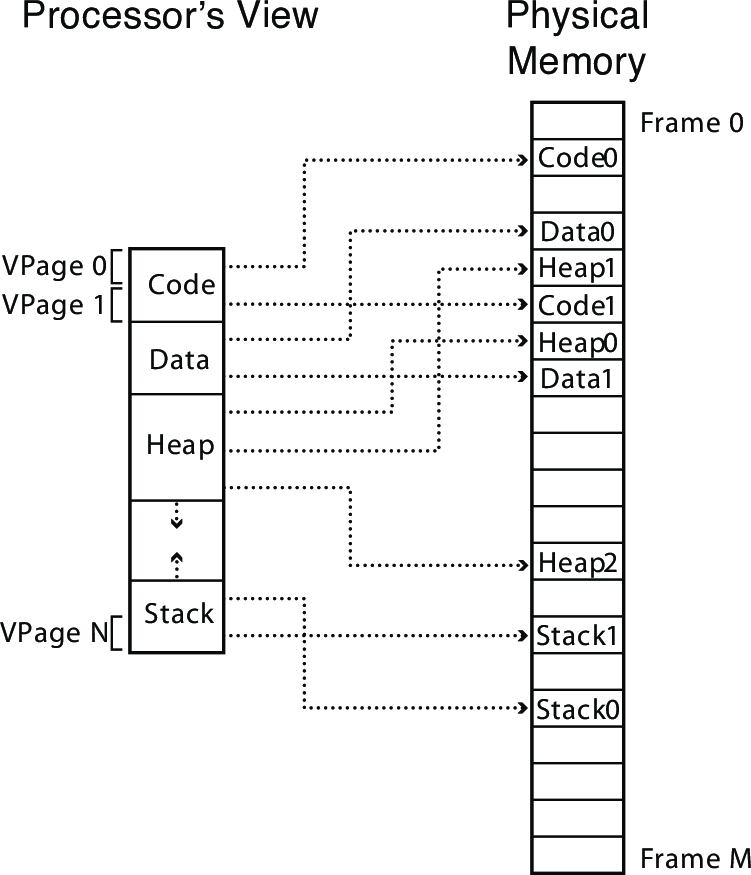

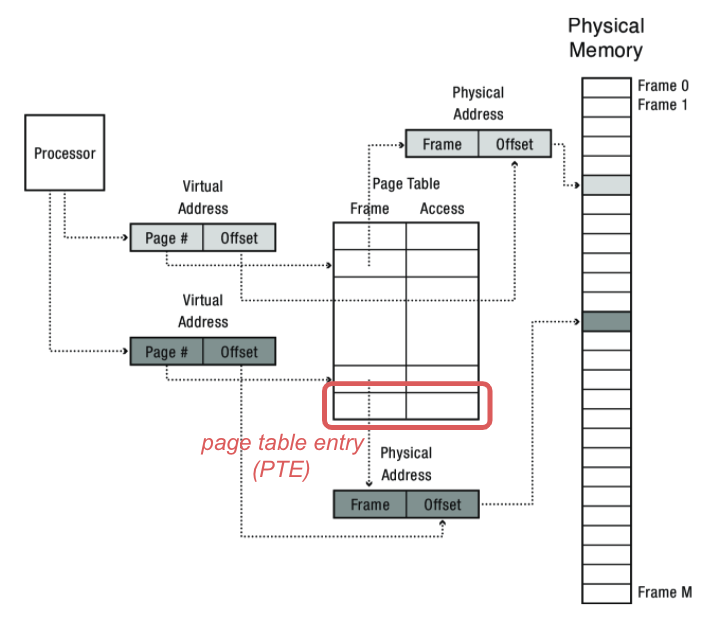

As before, the virtual address is used to look up the physical address

• Again, part of the virtual address is an index, and part is an offset
  • Since offset is lower-order bits, specifies location within contiguous virtual page or physical frame
• Page table contains access permissions like segment table

Example:

64-byte virtual address space (64 = 2^6  ->  6-bit virtual addresses)
16-byte pages

Virtual Memory
4 pages (64/16 = 4), 2 bits to specify virtual page number (VPN)
VPN
00  -> page for code,  addresses 00...15
01  -> page for heap,  addresses 16...31
10  -> <unused>,       addresses 32...47
11  -> page for stack, addresses 48...63

Virtual addresses on page with VPN 00:
000000
000001
000010
000011
000100
000101
000110
000111
001000
001001
001010
001011
001100
001101
001110
001111

Top two bits are always the virtual page number: 00

Page Table
  use VPN as index, each PTE stores
  physical page number (PPN), access permissions
  valid bit indicates whether physical page exists
+-------+-------+--------+
| valid |  PPN  | access |
+-------+-------+--------+
|   1   |  001  |   R    | (code)
|   1   |  100  |  R/W   | (heap)
|   0   |  ---  |  ---   | (unused)
|   1   |  111  |  R/W   | (stack)
+-------+-------+--------+

mov 17,%rdx
virtual address: 0x11 (010001)
split into VPN=01 and offset=0001
VPN corresponds to PTE |   1   |  100  |  R/W   | (heap)
So physical address is PPN concatenated with offset = 1000001 or 0x41

Physical Memory (128 bytes)
PPN
000 -> reserved for kernel
001 -> stores virtual page 00
010 -> free
011 -> free
100 -> stores virtual page 01
101 -> free
110 -> free
111 -> stores virtual page 11

Where would the page table be stored?
In the kernel's memory! (Physical page 000)

• Does copy-on-write still work with pages?
  • Set entries in both page tables to point to same page frames
  • Need core map of page frames to track which processes are pointing to which page frames (e.g., reference count)
• UNIX fork with copy on write
  • Copy page table of parent into child process
  • Mark all pages (in new and old page tables) as read-only
  • Trap into kernel on write (in child or parent)
  • Copy page
  • Mark both as writeable
  • Resume execution

Can I start running a program before its code and data are in physical memory?

• Set all page table entries to invalid
• When a page is referenced for first time, kernel trap
• Kernel brings page in from disk
  • Page in on demand
• Resume execution
• Remaining pages can be transferred in the background while program is running

• Pros:
  • Fixed-size pages avoid external fragmentation (can always use free memory)
  • Finding a free page is easy, no need to rearrange to make room
  • Flexible, enables sparse address spaces
• Cons:
  • Page table is in memory, so every memory access requires an extra memory access to first retrieve the page table entry
  • What if virtual address space is large?
    • Need a page table entry for each virtual page
    • 32-bits, 4KB pages => 500K page table entries
    • 64-bits => 4 quadrillion page table entries
  • Reduce page table size with larger pages?
    • Internal fragmentation: wasted space if we don’t need all of the space inside a large fixed size chunk
