CS 208 s21 — Caching: Basic Principles

Table of Contents

1 Video

Here is a video lecture for the material outlined below. It covers CSPP sections 6.4.1 (p. 615–616). It contains sections on

  1. locality: different types (0:58)
  2. locality: stride examples (6:40)
  3. revisit the memory hierarchy (12:17)
  4. caching terminology (15:09)
  5. types of cache misses (19:34)
  6. real cache hierarchy (Core i7) (21:54)
  7. cache organization: block offset (25:24)
  8. cache organization: sets (31:21)
  9. cache organization: spreadsheet example (35:17)
  10. cache organization: tags (38:20)
  11. cache miss example (41:24)

The Panopto viewer has table of contents entries for these sections. Link to the Panopto viewer: https://carleton.hosted.panopto.com/Panopto/Pages/Viewer.aspx?id=177f8bd5-d7a1-4eb9-b09f-ac59010d8ec7

2 Locality

sum = 0;
for (i = 0; i < n; i++) {
      sum += a[i];
}
return sum;
  • sources of data locality:
    • temporal: sum referenced in each iteration
    • spatial: consecutive elements of array a[] accessed
  • sources of instruction locality:
    • temporal: cycle through loop repeatedly
    • spatial: reference instructions in sequence

2.1 Code With Good Locality Accesses Adjacent Elements

int sum_array_rows(int a[M][N]) {
    int i, j, sum = 0;
    for (i = 0; i < M; i++)
        for (j = 0; j < N; j++)
            sum += a[i][j];
    return sum;
}

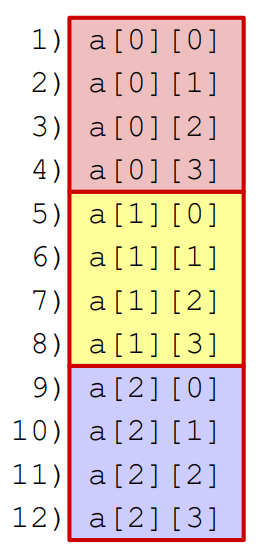

This is a stride 1 access pattern because we shift by 1 element each access. In general, the lower the stride, the better the locality.

int sum_array_rows(int a[M][N]) {
    int i, j, sum = 0;
    for (j = 0; j < N; j++)
        for (i = 0; i < M; i++)
            sum += a[i][j];
    return sum;
}

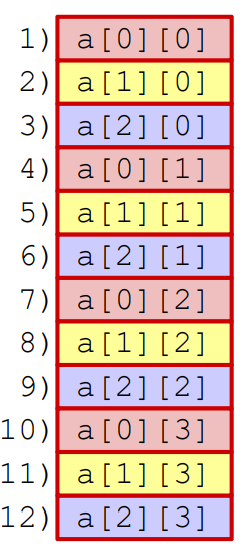

This is a stride N access pattern because we shift by N elements each access.

Recall the example from topic 1 where switching the order of nested loops caused summing an array to take almost 40 times longer. That was exactly this difference—going from a stride 1 access pattern to a stride N access pattern.

3 Caching Basics

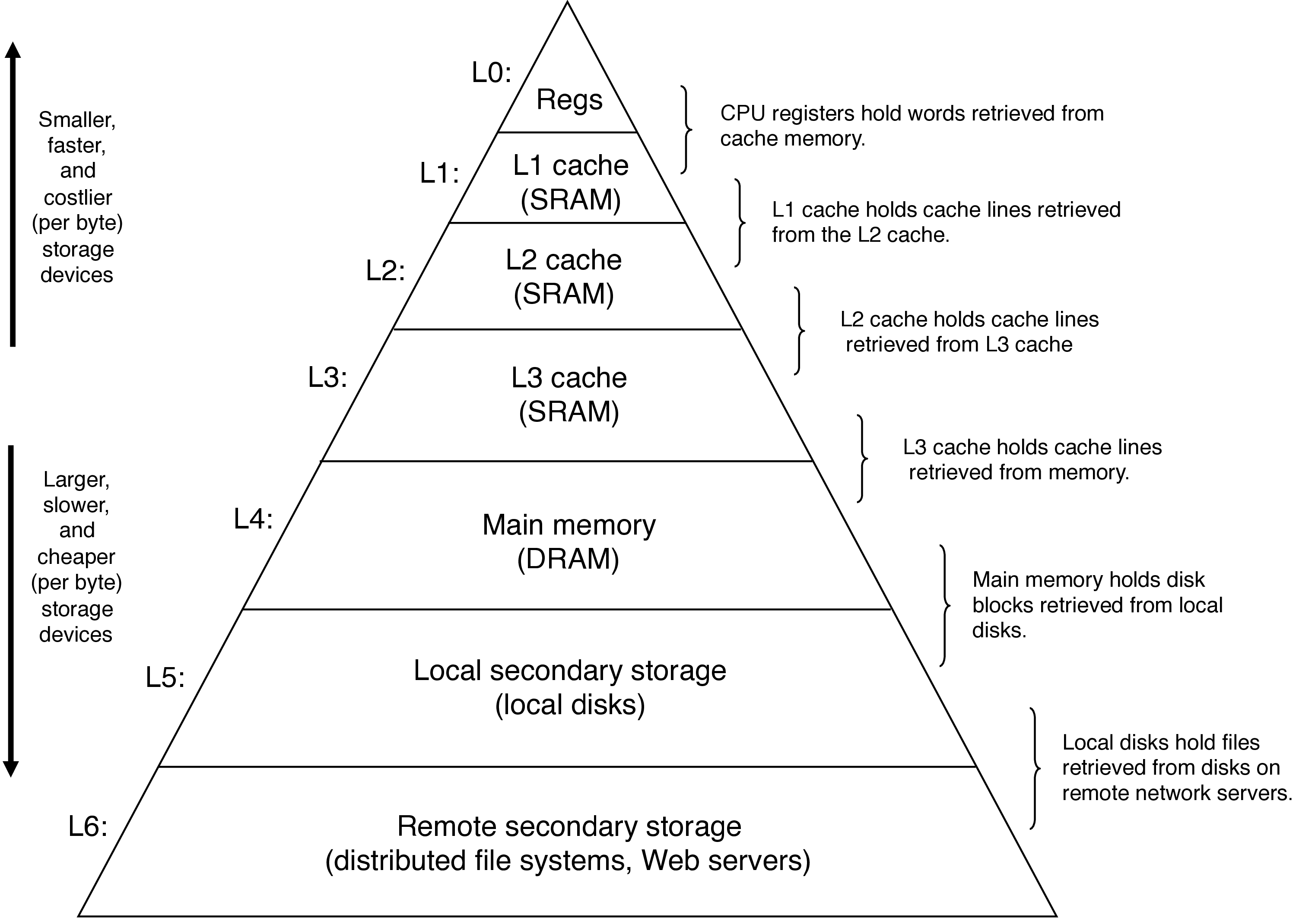

3.1 Revisiting the memory hierarchy


  • each level acts as a cache for the level below
  • registers explicitly program controlled
  • hardware manages caching transparently

3.2 Terminology

3.2.1 cache hits

  • finding needed data in level \(k\) instead of \(k + 1\)

3.2.2 cache misses

  • having to go to level \(k+1\) because the data is not in level \(k\)
    • cache at level \(k\) now contains the data
    • if level \(k\) cache is full, it will overwrite an existing block (replacing or evicting)
  • which block gets ovewritten governed by the cache's replacement policy
    • a random replacement policy would choose randomly
    • a least recently used (LRU) policy would choose the block with the oldest last access

3.2.3 kinds of cache misses

  • if a cache is empty, every access will result in a cache miss (compulsory or cold misses on a cold cache)
    • won't occur once a cache has been warmed up through repeated accesses
  • a cache at level \(k\) must have a placement policy to decide where to place a block retrieved from a \(k + 1\) cache
    • faster caches tend to implement stricter policy since it's important to be able to locate a block quickly
      • e.g., block \(i\) at level \(k+1\) must be placed in block \(i \mod 4\) at level \(k\)
      • can lead to a conflict miss (enough room for a block, but placement policy causing a miss, as in cache thrashing between two repeatedly accessed blocks)
  • the set of blocks involved in the current phase of the program (e.g., a loop) is referred to as the working set
    • when the working set is too large for a cache, that cache will experience capacity misses

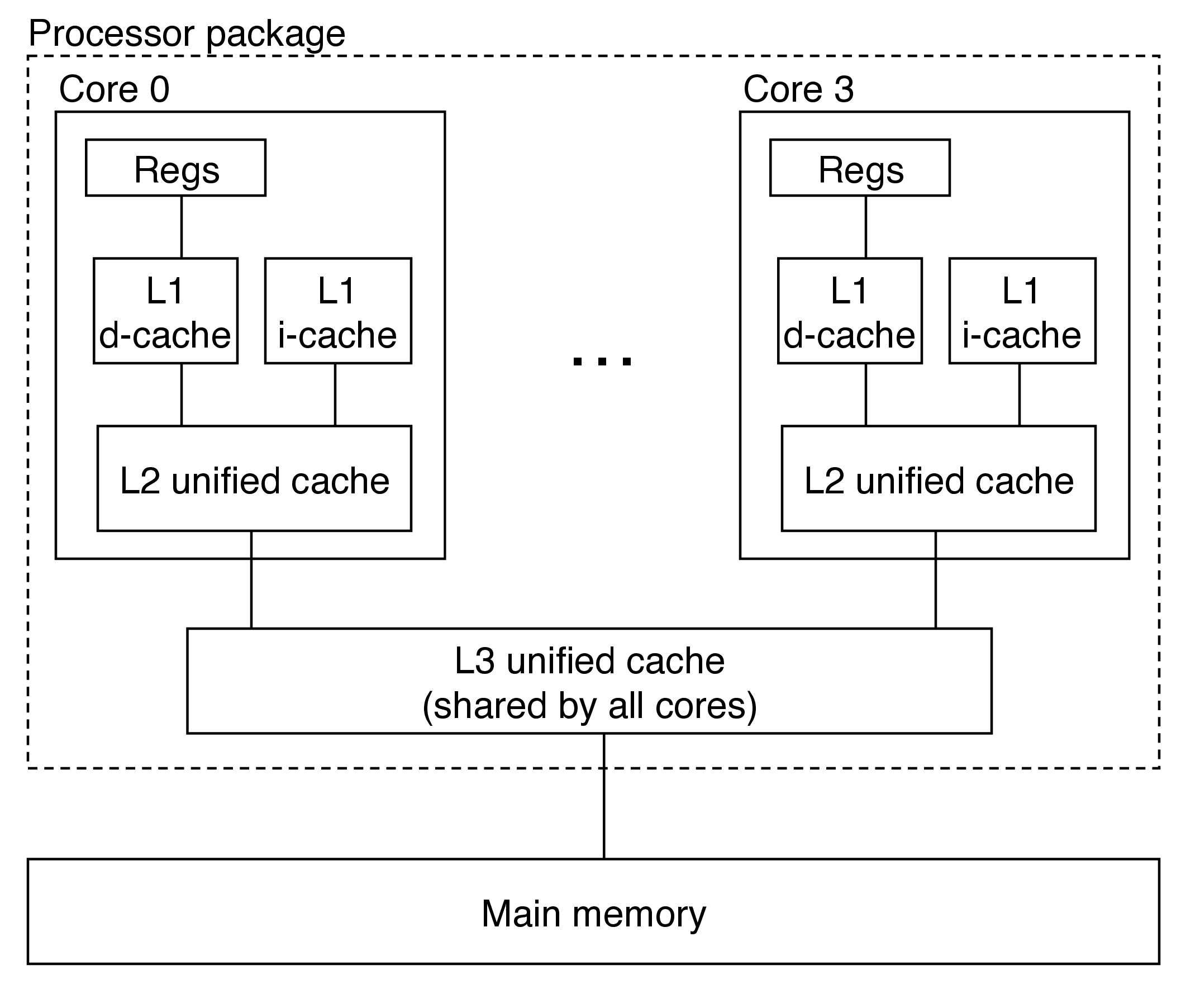

4 Anatomy of a Real Cache Hierarchy


  • caches that hold only instructions are i-caches
  • caches that hold only data are d-caches
  • caches that hold both are unified caches
  • modern processors include separate i- and d-caches
    • can read an instruction and data at the same time
    • caches are optimized to different access patterns
    • trades off fewer conflict misses (data and instructions won't conflict) for potentially more capacity misses (smaller caches)

4.1 cache management

  • each level must have some managing logic provided by software or hardware
  • compiler manages registers
  • L1/2/3 managed by hardware logic built into the caches
  • usually no action is required on the part of the program to manage caches

5 Cache Organization

5.1 Fundamentals

  • the block size \(B\) is the unit of transfer between memory and cache (in bytes, always a power of 2)
  • we'll use the low-order \(\log_2 B = b\) bits of a memory address to specify a byte within a block
    • the block offset
  • for an \(m\)-bit address, the remaining \(m - b\) bits will be used to identify the block (block number)


5.1.1 Where Should Data Go in the Cache?

  • need the procedure for checking if a memory address is in the cache to be fast
  • solution: mimic a hash table, a data structure that provides fast lookup
  • spreadsheet example
    • use middle two bits from address (lower two bits of block number) as set index
    • use \(s\) bits to index \(2^s=S\) sets

5.1.2 Example

A request for address 0x2a results in a cache miss. Which index does this block get loaded into and which 3 other addresses are loaded along with it?

  • address: 0b 10 10 10, so index 10
  • block offset is 10, so full block consists of 0x28, 0x29, and 0x2b

5.1.3 What About Collisions?

  • access an address not present in the cache, but with the same cache index
  • we need to be able to tell this blocks apart

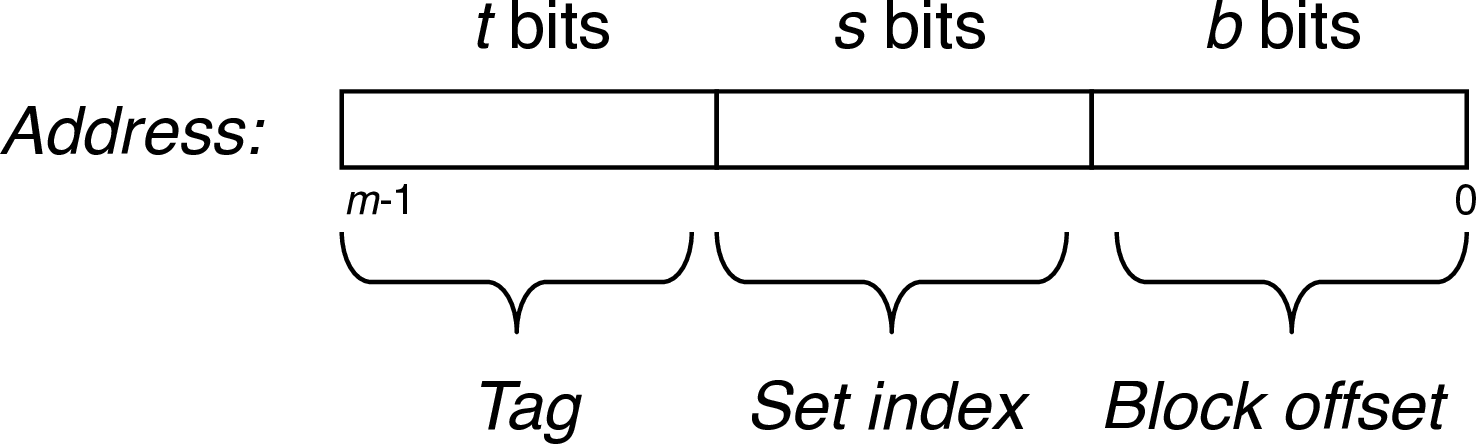

  • solution: use leftover address bits as tag bits
    • \(t = m - s - b\)


5.1.4 Cache Access

  • CPU sends address request for chunk of data
    • index field tells you where to look in the cache
    • tag field lets you check if the data is block you want
    • offset field selects start byte within block
