Like many programming languages, C provides fixed-length arrays. These arrays occupy a contiguous chunk of memory with the elements in index order.

int a[6]; // declaration, stored at 0x10

// indexing:
a[0] = 0x015f;
a[5] = a[0];

// No bounds checking
a[6] = 0xbad; // writes to 0x28
a[-1] = 0xbad; // writes to 0xc

// an "array" is just a pointer to an element
int* p; // stored at 0x40

// these two lines are equivalent
p = a;
p = &a[0];

// write to a[0]
*p = 0xa;

// see subsection on strings
char str[] = "hi!!!!";

This spreadsheet memory diagram shows one way the above code could affect memory. Note that this is now a 64-bit example, so memory addresses (and thus the pointer p) are 8 bytes wide. The row addresses and offsets work the same way as the previous examples, the rows are just 8 bytes instead of 4. This means the block of 24 bytes holding the 6 int's in the array a takes up 3 adjacent rows. Trace through the code and study the memory diagram.

While there are no objects in C, the programmer can still create new data types. The primary way to create data types in C are structures (struct). A struct is a way of combining different types of data:

struct list_ele {
    char *value;
    struct list_ele *next;
};

struct queue {
    struct list_ele *head;
};

int main() {
    struct list_ele node;
    node.value = "I'm just a humble node";
    node.next = NULL;

    struct queue q;
    q.head = &node;

    struct list_ele second;
    q.head->next = &second; // equivalent to (*q.head).next = &second;
}

• variable declarations like any other type: struct name name1, *pn, name_ar[3];
• access fields with . or -> in the case of the pointer (p->field is shorthand for (*p).field)
• like arrays, struct elements are stored in a contiguous region with a pointer to the first byte
  • sizeof(struct list_ele)? 16 bytes (8 bytes for each pointer)
  • compiler maintains the byte offset information needed to access additional fields
    • e.g., the compiler knows that next is stored 8 bytes after the start of a list_ele

• how would you declare an array of three strings (i.e., what is the type signature)?¹
• how many bytes does it take to represent the string "strangelove" in C?²
• how would you define a struct to represent a 2D point?³

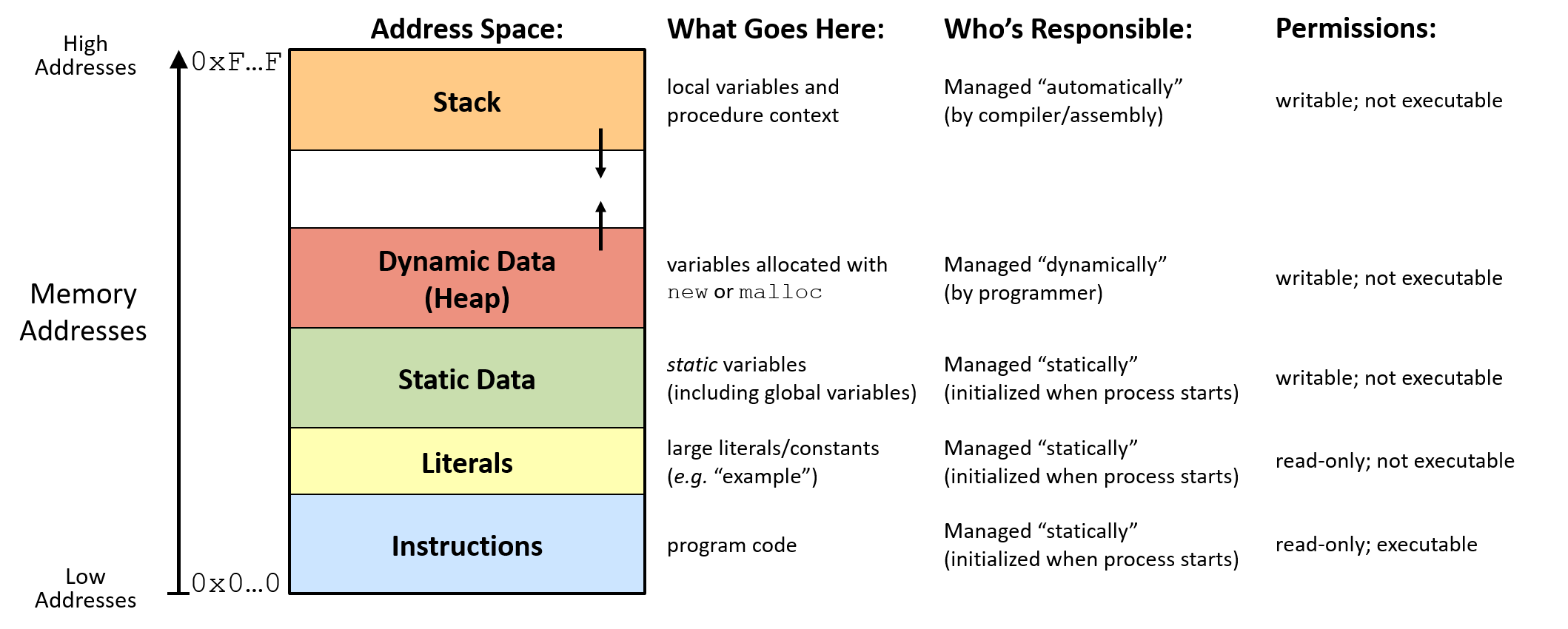

Though memory is a long array of bytes, it is actually separated into various segments or memory regions. Memory allocated at compile time is located on the stack, which resides at high addresses in memory. As more data is added to the stack, the region grows to include lower addresses, so we say the stack grows down.

Memory allocated dynamically using malloc is placed on the heap, which resides somewhere in the middle of memory. As more data is added to the heap, the region grows to include higher addresses, so we say the heap grows up.

The other three regions (static data, literals, and instructions) are fixed in size and get initialized when a program starts running.

There are two ways that memory gets allocated for data storage:

1. Compile Time (or static) Allocation
   • Memory for named variables is allocated by the compiler
   • Exact size and type of storage must be known at compile time
   • For standard array declarations, this is why the size has to be constant
2. Dynamic Memory Allocation
   • Memory allocated "on the fly" during run time
   • Dynamically allocated space usually placed in a program segment known as the heap or the free store
   • Exact amount of space or number of items does not have to be known by the compiler in advance.
   • For dynamic memory allocation, pointers are crucial

• We can dynamically allocate storage space while the program is running, but we cannot create new variable names "on the fly"
• For this reason, dynamic allocation requires two steps:
  1. Creating the dynamic space.
  2. Storing its address in a pointer (so that the space can be accesed)
• To dynamically allocate memory in C, we use the malloc function provided by stdlib.h
  • malloc takes in a number of bytes to allocate and returns a pointer to the newly allocated space
  • malloc does not do any initialization, so the contents of this memory can be whatever was last written to those bytes
    • this means you must always perform initialization on memory return by malloc
• De-allocation:
  • Deallocation is the "clean-up" of space being used for variables or other data storage
  • Compile time variables are automatically deallocated based on their known extent
  • It is the programmer's job to deallocate dynamically created space
  • To de-allocate dynamic memory, we use the free function operator
    • free takes a pointer that was previously returned by malloc and makes that memory available for future allocation
    • free has undefined behavior is used with a pointer that wasn't returned by malloc or a pointer that was already freed

It's common to use typedef to give the struct type a more concise alias. A typedef statement introduces a shorthand name for a type. The syntax is…

typedef <type> <name>;

The following defines Fraction type to be the type (struct fraction). C is case sensitive, so fraction is different from Fraction. It's convenient to use typedef to create types with upper case names and use the lower-case version of the same word as a variable.

typedef struct fraction Fraction;
Fraction fraction;      // Declare the variable "fraction" of type "Fraction"
                        // which is really just a synonym for "struct fraction".

The following typedef defines the name Tree as a standard pointer to a binary tree node where each node contains some data and "smaller" and "larger" subtree pointers.

typedef struct treenode* Tree;
struct treenode {
    int data;
    Tree smaller, larger;        // equivalently, this line could say
};                               // "struct treenode *smaller, *larger"

struct foo {
    long id;
    char arr[11];
};

char get(struct foo f, int i) {
    return f.arr[i];
}

char get_v2(struct foo *f, int i) {
    return f->arr[i];
}

char set(struct foo f, int i, char v) {
    return f.arr[i] = v;
}

char set_v2(struct foo *f, int i, char v) {
    return f->arr[i] = v;
}

int main() {
    struct foo x = {42, {'h', 'e', 'l', 'l', 'o', 'c', 's', '2', '0', '8', '\0'}};
    char c = get(x, 4);
    char c2 = get_v2(&x, 4);

    set(x, 1, '@');
    set_v2(&x, 1, '@');
}

This example shows the importance of using a pointer to pass a struct to a function rather than passing the struct itself. I've created a struct foo that contains a long and an array of 11 char. There's a function get that takes a struct foo and an index, and returns the char at that index. There's another function set that takes a struct foo, an index, and a char and sets the char at that index.

There are two versions of each of these functions, one that takes a struct foo and one that takes at struct foo*. Notice how with get, passing a struct foo results in the entire structure being copied. With set, it doesn't even work when passing a struct foo because the modification is done to the local copy.

Here's an extended example playing around with a struct and heap vs stack allocation. Plug in into C Tutor or compile and run it yourself.

/* A demonstration of pointers and pass-by-value semantics in C
 * CS 208
 * Aaron Bauer, Carleton College
 * compile with "gcc -Og -g -o point_test point_test.c"
 * to get consistent address values, run with "setarch x86_64 -R ./point_test"
 */

#include <stdio.h>
#include <stdlib.h>

typedef struct point {
  int x;
  int y;
} point_t;

void f(point_t p) {
  p.x++;
  printf("\nf: &p = %p\n", &p); // different address than &p in main, p has been copied
  printf("f: p = (%d, %d)\n\n", p.x, p.y);
}

void g(point_t *q) {
  q->x++;
  printf("\ng: &q = %p\n", &q); // different address than &q in main, q has been copied
  printf("g: q = %p\n", q); // but the value of q is the same (same heap address), the structure hasn't been copied
  printf("g: q = (%d, %d)\n\n", q->x, q->y);
}

int main() {
  // code stored at low addresses
  printf("&main = %p\n", &main);
  printf("&f = %p\n", &f);
  printf("&g = %p\n\n", &g);

  // p is stack-allocated (does not use malloc)
  point_t p = {5, 6};
  printf("&p = %p\n", &p);
  printf("p = (%d, %d)\n", p.x, p.y);
  f(p);
  printf("p = (%d, %d)\n\n", p.x, p.y); // mutation in f does not affect p, as p was copied

  point_t *q = (point_t*)malloc(sizeof(point_t));
  q->x = 3; // q->x is shorthand for (*q).x
  q->y = 4;
  printf("&q = %p\n", &q); // q is stack-allocated, &q is high in memory
  printf("q = %p\n", q); // q points to heap data, so it's value is a much lower address (higher than code)
  printf("q = (%d, %d)\n", q->x, q->y);
  g(q);
  printf("q = (%d, %d)\n", q->x, q->y); // mutation in g affects *q, same heap address in main and g
  free(q);
  printf("q = (%d, %d)\n", q->x, q->y); // undefined behavior to access freed memory
}

• Recommended programming environment: use VS Code to connect to mantis server (you will need to be on campus or connected to the Carleton VPN in order to connect to mantis)

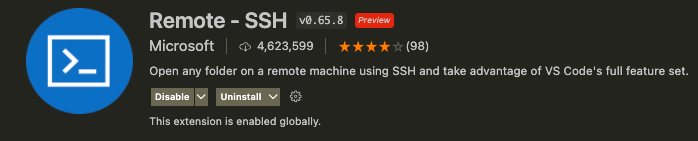

  • Install Remote - SSH extension in VS Code (View->Extensions, search for SSH)



  • Click the Open a Remote Window button in the lower left corner

  • Select Connect to Host…, then Add New SSH Host…, then enter

    ssh YOUR_CARLETON_USERNAME@mantis.mathcs.carleton.edu


    (I would enter ssh awb@mantis.mathcs.carleton.edu)

  • Select the first option when it asks what configuration file to update
  • Click Connect on the dialog that pops up in the lower right, you will be prompted to enter your Carleton password
• Now that you're connected to mantis, you can use the Terminal to get started on the lab
  • The terminal is a text-based interface for interacting with a computer, in this case the CS mantis server
  • You enter one command at a time, hit enter to run it, and see any output
  • One important fact about the interface: it is active in a specific directory (folder)
    • Use the command ls (list) to list the files in the current directory
    • Use the command pwd (print working directory) to print the path of the current directory
      • A path is a sequence of directories, each one inside the previous
    • Use the command cd (change directory) to move the terminal to a different directory
  • See parts One and Two of this tutorial for more on the basics of using a terminal
• Use the commands given in the lab writeup to download and extract the handout files
• You will implement a linked-list-based data structure to practice using pointers and memory management in C
• queue.c is the only files you will modify—The rest are part of the autograding infrastructure
• Run make in the terminal to compile your code, and make test to run the test cases
  • The test cases make up 57 out of the 60 points on the lab, the remaining 3 are earned by making a check-in post on Moodle
• At a minimum, take some time this weekend to make sure you can download, compile, and run the tests.
