CS 208 s22 — Compilation, Memory Layout, and the Stack

Table of Contents

1 Compilation

  • We will start by zooming out a little from assembly to look briefly at the whole compilation process
  • Let's say out code is in two files: p1.c and p2.c
  • We compile our program with the command: gcc -Og p1.c p2.c -o p
    • this produces a binary file p containing the resulting machine code
    • we can run the program with the command: ./p

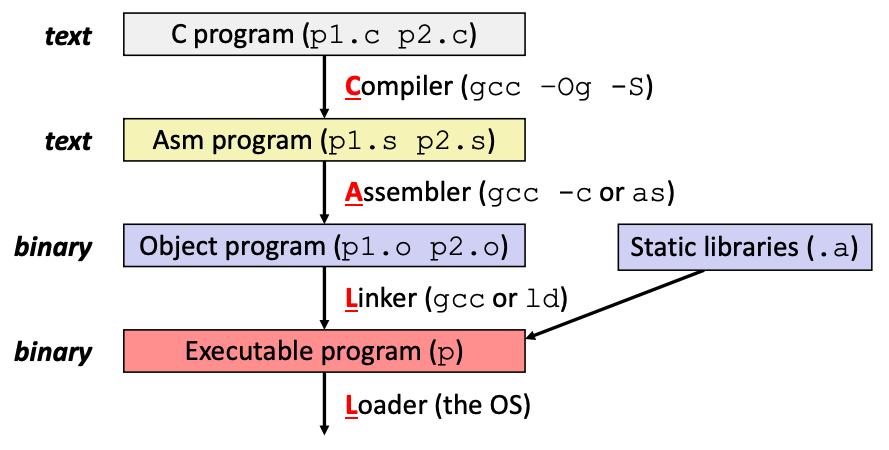

  • compilation consists of 3 primary phases:
    1. translating source code (e.g., C code) to assembly (still in human-readable text form at this point)
    2. translating assembly to binary object files (each source file is assembled separately)
    3. linking object files (and any standard library files) together into the final executable

1.1 Producing Machine Language

  • how do we go from C code to machine code? How do we get the information we need?
  • simple cases: arithmetic and logical operations, shifts, etc.
    • all necessary information is contained in the instruction itself (source, destination, size)
  • but consider
    • conditional jump
    • accessing static data
    • call
  • all of these depend on addresses and/or labels
    • these are a problem because we don't have the final executable yet (i.e., we don't know where these will be located in the final executable)

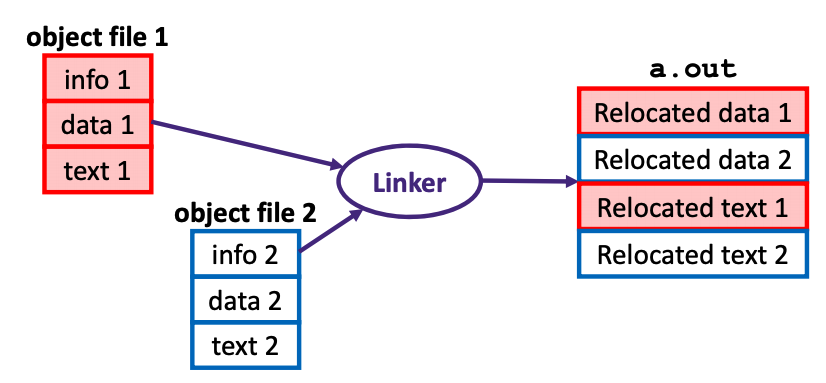

  • this is one purpose of the linking step: connect everything together and fill in these "holes" with the appropriate values


2 Stack Operations

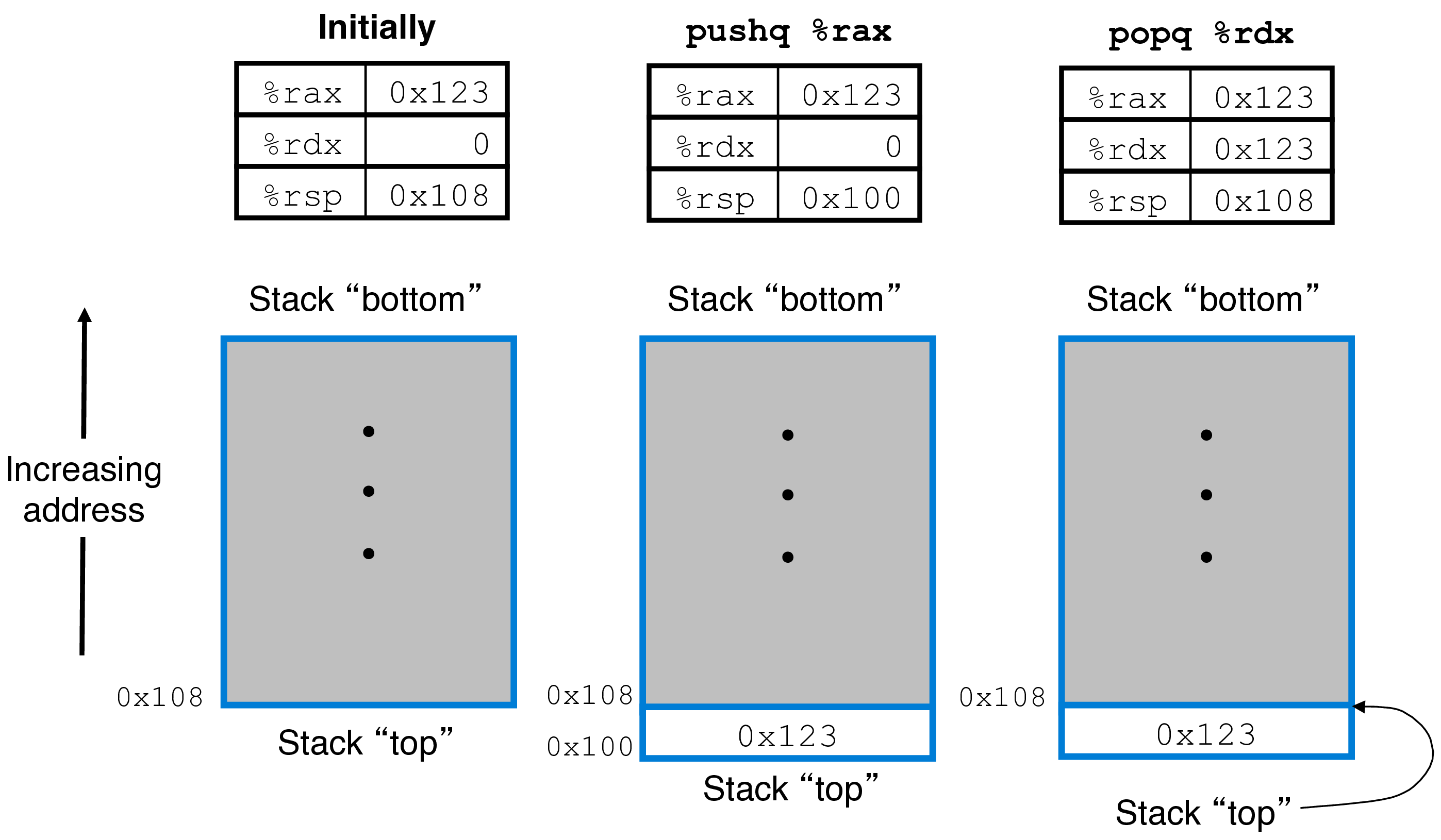

  • pushq and popq instructions push/pop quad words onto/off of the program stack

    • pushq has a source operand, popq has a destination
    • the stack is a region of memory used to facilitate local variables and procedure calls
    • top of the stack is the lowest memory address, and is conventionally drawn at the bottom
    • each of these instructions combine a data move (copy the source to memory location for push, copy value in memory to destination for pop) and modifying the stack pointer
      • %rsp, the stack pointer, always contains the address of the top of the stack
      • either decremented by 8 (push, stack grows down) or incremented by 8 (pop)


3 Procedures

3.1 Are Jumps Enough?

  • could we implement procedure calls using jumps?
  • maybe we could use jmp to go into a function call, and then return by jmp-ing to a label right after the call
func1:
    ...
    jmp func2
back:
    ...
done:


func2:
    ...
    jmp back
done:
  • but what if func1 calls func2 twice?
func1:
    ...
    jmp func2
back1:
    ...
    jmp func2
back2:
    ...
done:


func2:
    ...
    jmp back? // which label do we jump to?? Have to choose at compile time
done:
  • we would need to compile a different version of func2 for every call, so that we could jump back to the right place
  • there's got to be a better way…

3.2 Overview

  • mechanisms needed to facilitate procedures (e.g., procedure P calls procedure Q, then Q executes and returns back to P):
    • passing control: instruction pointer (%rip) must be set to the start of Q (call) and then set to the instruction following the call to Q in P (return)
    • passing data: P has to provide arguments to Q and Q has to return a value to P
    • allocating and deallocating memeory: Q needs to acquire space for local variables and then free that space
  • requires seperate storage per call (not just per procedure)

3.3 The Run-Time Stack


  • a stack data structure (last-in, first-out) a natural fit for managing run-time procedure memory
    • only the most recent procedure call needs to allocate space for local variables or make a new procedure call
    • when a procedure returns, we want to free the memory used by this most recent call
    • hence it's a natural fit to push and pop procedure data from a stack

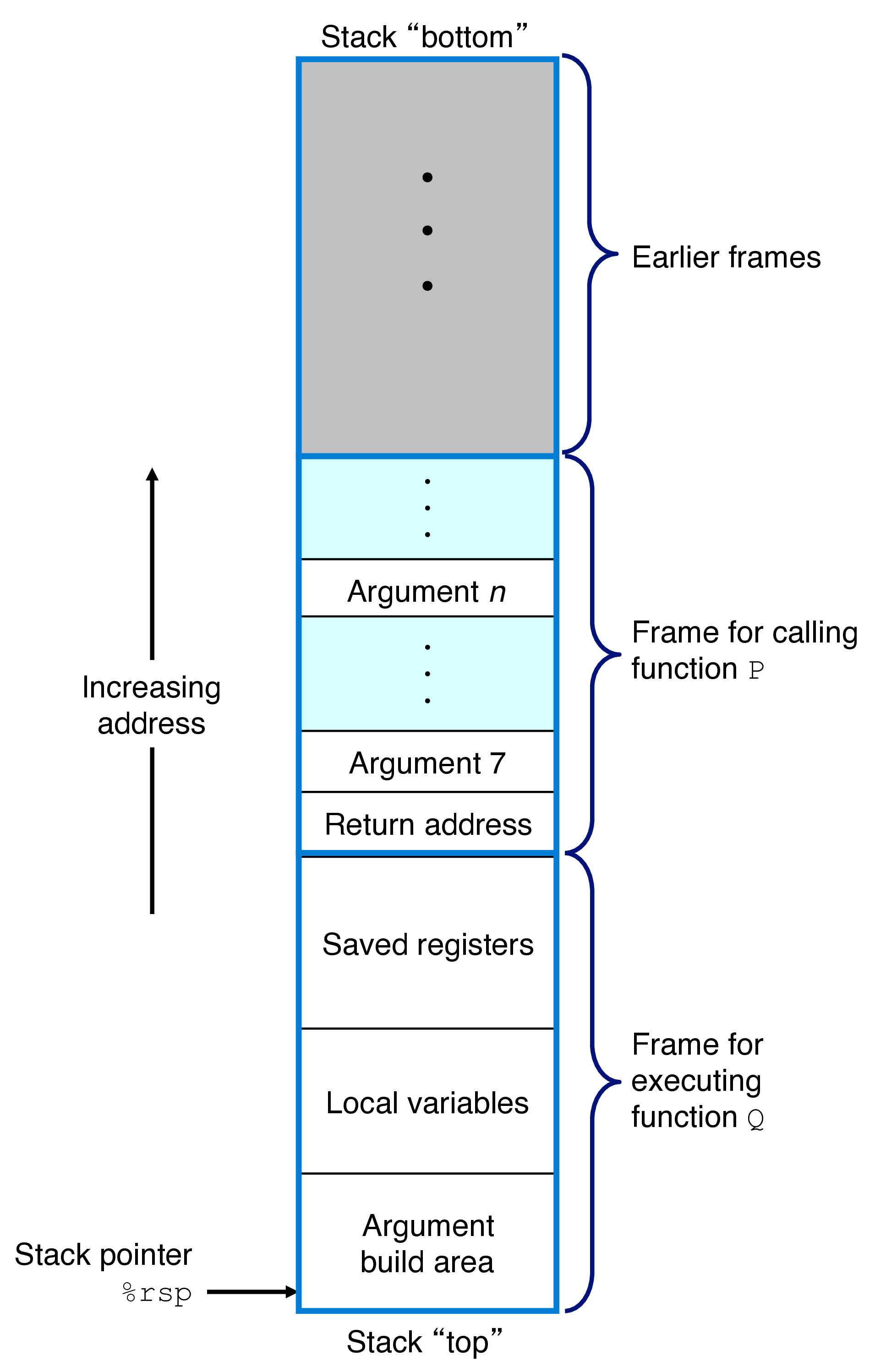

  • when a procedure allocates space on the stack it is called that procedure's stack frame
  • x86-64 only allocates what a procedure actually needs
    • if a procedure's local variables can all be held in registers and it calls no other procedures, no stack frame is needed

3.4 Control Transfer

  • processor needs to know where it should resume execution after a procedure call returns
    • the call instruction pushes the return address of the following instruction onto the stack (part of the calling procedure's stack frame) and sets the instruction pointer (%rip)to the start of the new procedure
      • call operand can either be direct (a label) or indirect (* followed by one of the standard operand formats)
    • the ret instruction pops the return address off the stack and copies it to %rip

3.4.1 Example

  • At the start of a function, the return address will be stored at %rsp.
  • In gdb, p $rsp will show something like 0x7fffffffdfa8
  • We can deference the pointer with x $rsp, which shows that an address like 0x004012e9 is stored at the top of the stack. This is the return address.
  • If we dereference that address, and tell gdb to interpret the bytes as an instruction (x /i 0x004012e9), we will see the intruction following the original call (e.g., 0x4012e9 <main+82>: mov %rax,%rdi). This makes sense as the instruction after the callq instruction is where the program should return to.

4 Exercise

Top of the stack at 0x200, 8 bytes stored there contain 0x20. What changes about registers or memory as a result of popq %r8?1

5 Practice

CSPP practice problem 3.32 (p. 244)

Footnotes:

1

popq copies the top 8 bytes of the stack to %r8, so %r8 will now contain 0x20. This also "pops" these 8 bytes off the stack, so 8 is added to %rsp, making it 0x208 (remember, the stack grows down to lower memory addresses, so moving %rsp up in memory shrinks the stack). Nothing changes in terms of values stored in memory — %rsp tracks the top of the stack, but the system doesn't zero-out popped values or anything like that.
